اتصالات تک لمسی سری KQ2 تامینکنندگان

صفحه اصلی / محصولات / لوازم جانبی پنوماتیک / اتصال با یک لمس / اتصالات تک لمسی سری KQ2

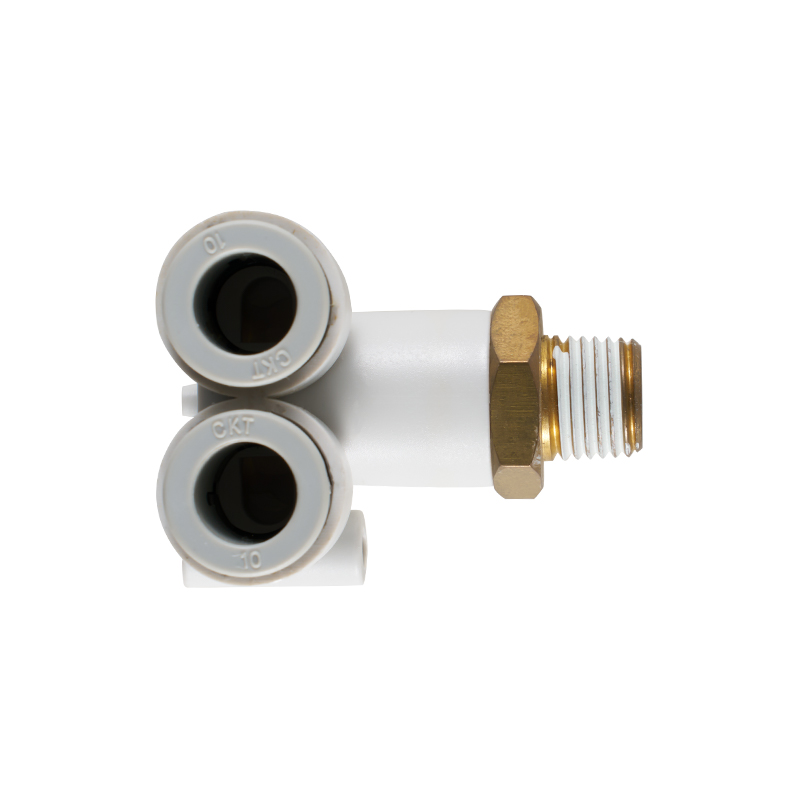

اتصالات تک لمسی سری KQ2 اتصالات تک لمسی سری KQ2
  • اتصالات تک لمسی سری KQ2
  • اتصالات تک لمسی سری KQ2
اتصال با یک لمس

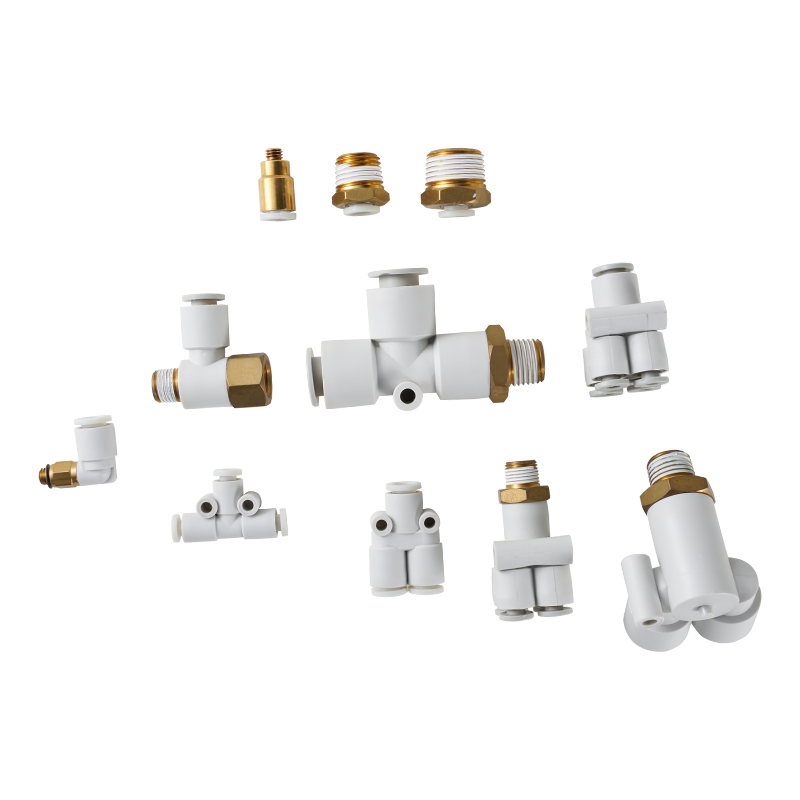

اتصالات تک لمسی سری KQ2

اتصالات تک لمسی سری KQ2 یک جزء اصلی است که برای ساده کردن عملیات اتصال خط لوله سیال طراحی شده است. مفهوم اصلی طراحی آن بر روی دستیابی به فرآیندهای نصب و حذف سریع و آسان در حالی که اطمینان از ثبات و یکپارچگی آب بندی اتصال را تضمین می کند، تمرکز دارد و برای انواع سناریوهای انتقال سیال مناسب است.

راحتی اصلی: ویژگی قابل توجه این سری مکانیسم عملکرد تک مرحله ای آن است که معمولاً فقط به یک فشار برای تکمیل اتصال مطمئن لوله و تشکیل یک مهر و موم مؤثر نیاز دارد که فرآیند نصب را بسیار ساده می کند.

قابلیت اطمینان اتصال: این طرح دارای ساختار قفل دقیق داخلی است که پس از قرار دادن صحیح اتصالات لوله به طور خودکار قفل می شود و به طور موثر از جدا شدن تصادفی تحت ارتعاش، نوسانات فشار یا کشیدن تصادفی جلوگیری می کند و پایداری طولانی مدت نقطه اتصال را تضمین می کند.

ضمانت آب بندی: اجزای آب بندی یکپارچه و بهینه می توانند عملکرد آب بندی مداوم و موثر را در شرایط کاربرد مشخص و محدوده سازگاری سیال ارائه دهند و خطر نشتی را کاهش دهند.

سازگاری گسترده: سازگاری در طراحی و انتخاب مواد در نظر گرفته می‌شود و می‌تواند با انواع مشخصات و انواع لوله‌های رایج سازگار شود تا نیازهای اساسی ساخت و ساز سیستم‌های سیال مختلف را برآورده کند.

راحتی نگهداری: یک مکانیزم آزادسازی راحت طراحی شده است تا امکان حذف سریع و غیر مخرب لوله ها را در صورت لزوم فراهم کند، بازرسی، نگهداری یا سازماندهی مجدد سیستم را تسهیل کند و کارایی نگهداری بعدی را بهبود بخشد.

ایمیل: manager@cktworld.com
دانلود
قبلی:اتصالات تک لمسی خود آب بندی سری KC
بعدی:مقاله بعدی وجود ندارد

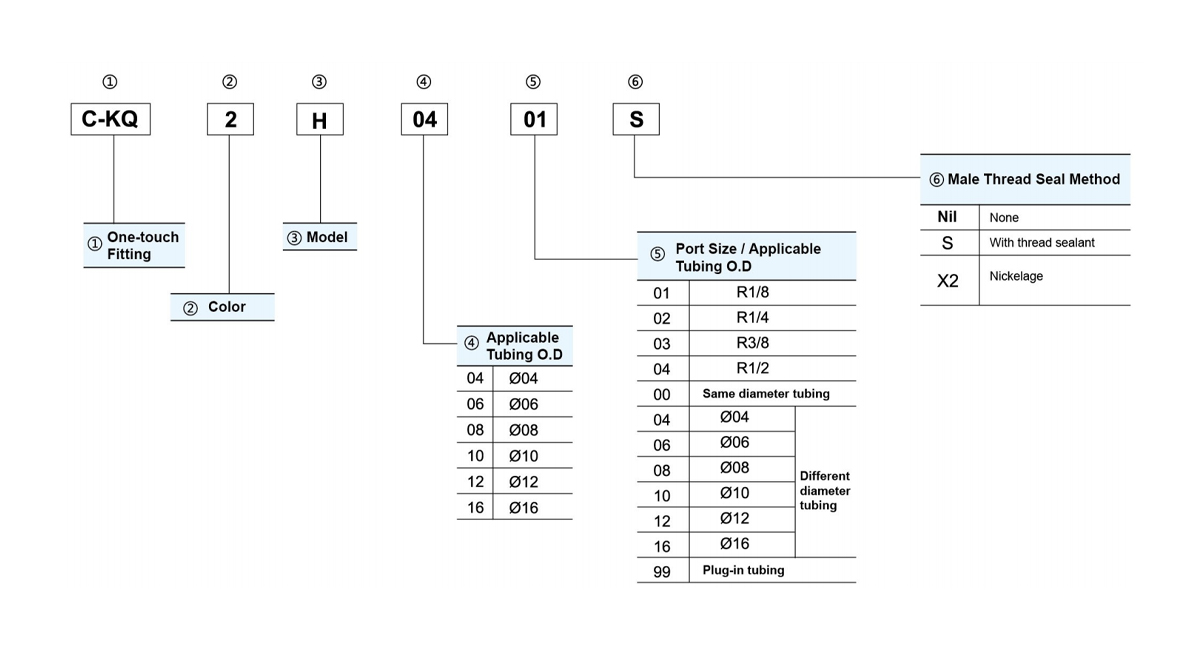

  • مایع هوا /آب
    مواد برنج
    حداکثر عملیاتی فشار 1.0 مگا پاسکال
    وکیوم فشار -100 کیلو پاسکال
    اثبات فشار 3.0 مگا پاسکال
    عملیاتی دما محدوده هوا:-5~60℃,Water:0~40℃
    قابل اجرا لوله مواد نایلون، یورتان
    قابل اجرا مناسب اندازه Ø4،Ø6،Ø8،Ø10،Ø12،Ø16

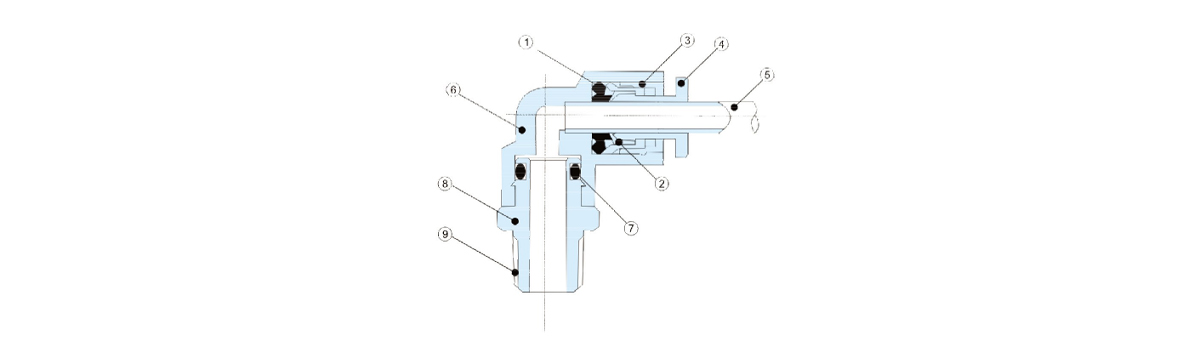

  • ① Seal NBR
    ② Chuck Stainless Steel
    ③ Guide Stainless Steel Or Brass
    ④ Release Button POM
    ⑤ Tubing Nylon Or Urethane
    ⑥ Body PBT
    ⑦ O ring NBR
    ⑧ Material Body Brass
    ⑨ Thread M/R/Rc

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane

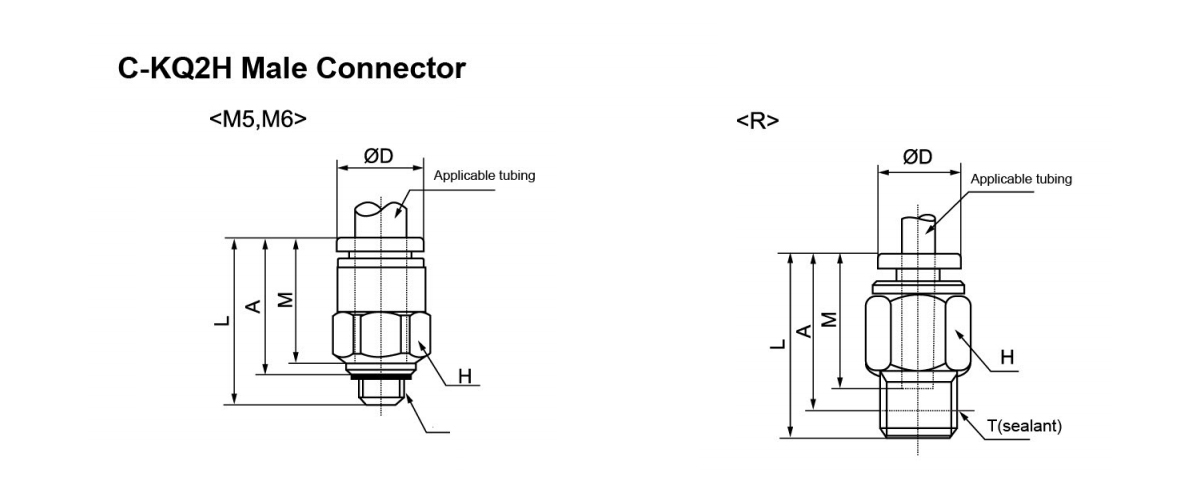

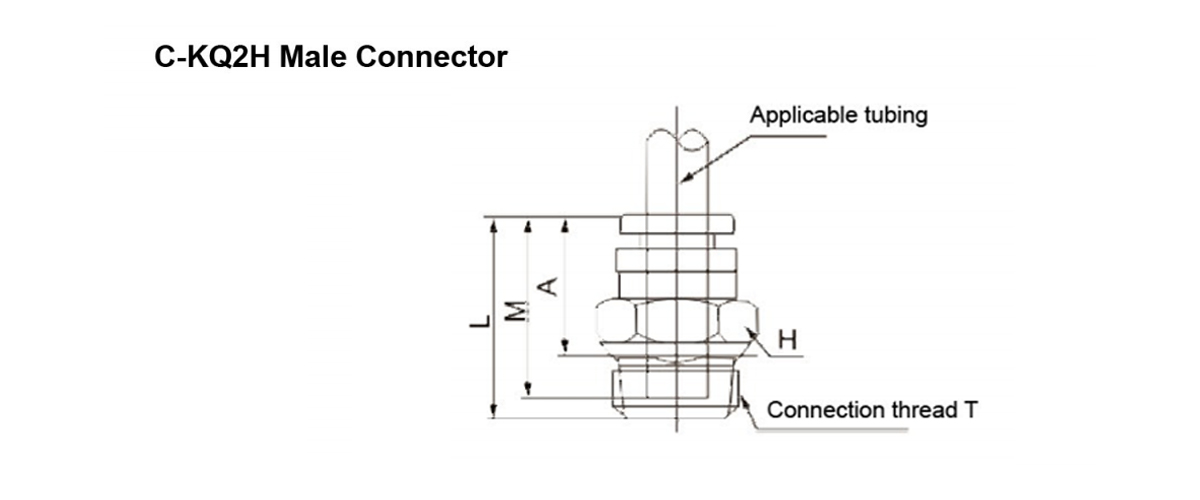

    Ø4 C-KQ2H04-01S 1/8 10 - 22 18 16 5.6 4 9
    C-KQ2H04-02S 1/4 14 - 19.5 13.5 16
    Ø6 C-KQ2H06-01S 1/8 12 - 22.5 18.5 17 13.1 10.4 16
    C-KQ2H06-02S 1/4 14 - 23 17 14
    C-KQ2H06-03S 3/8 17 - 22 15.5 27
    Ø8 C-KQ2H08-01S 1/8 14 - 28 24 18.5 26.1 18.0 21
    C-KQ2H08-02S 1/4 26.5 20.5 19
    C-KQ2H08-03S 3/8 17 - 22 15.5 26
    Ø10 C-KQ2H10-01S 1/8 17 - 30 26 21 26.1 26.1 19
    C-KQ2H10-02S 1/4 33.5 27.5 41.5 29.5 30
    C-KQ2H10-03S 3/8 29 22.5 30
    C-KQ2H10-04S 1/2 22 - 27 19 53
    Ø12 C-KQ2H12-02S 1/4 19 - 34.5 28.5 22 58.3 46.1 42
    C-KQ2H12-03S 3/8 30 23.5 34
    C-KQ2H12-04S 1/2 22 - 22 51
    Ø16 C-KQ2H16-03S 3/8 24 25.7 39.5 33 25 81 (81) 61
    C-KQ2H16-04S 1/2 35.5 27.5 113 (96) 47


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

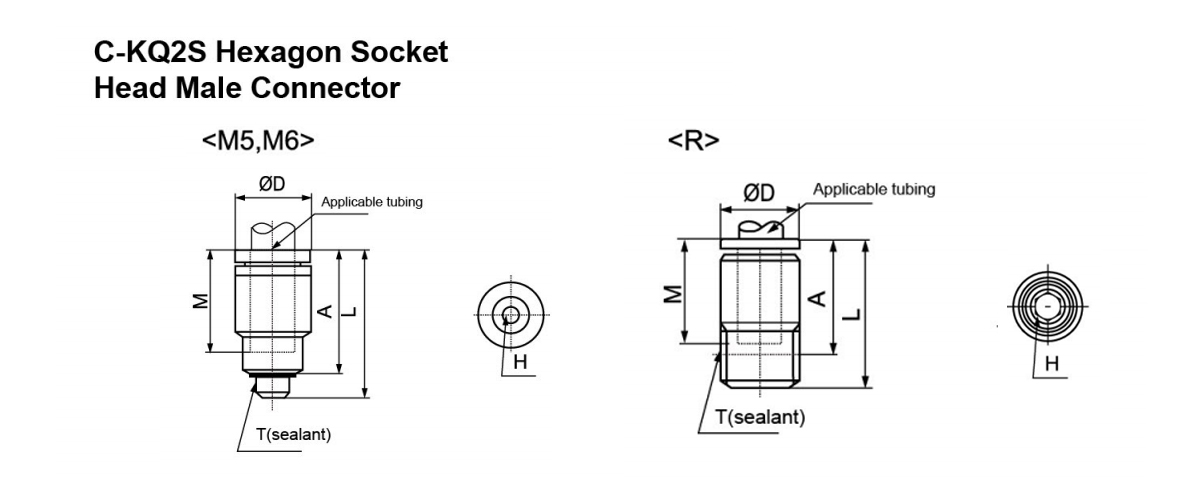

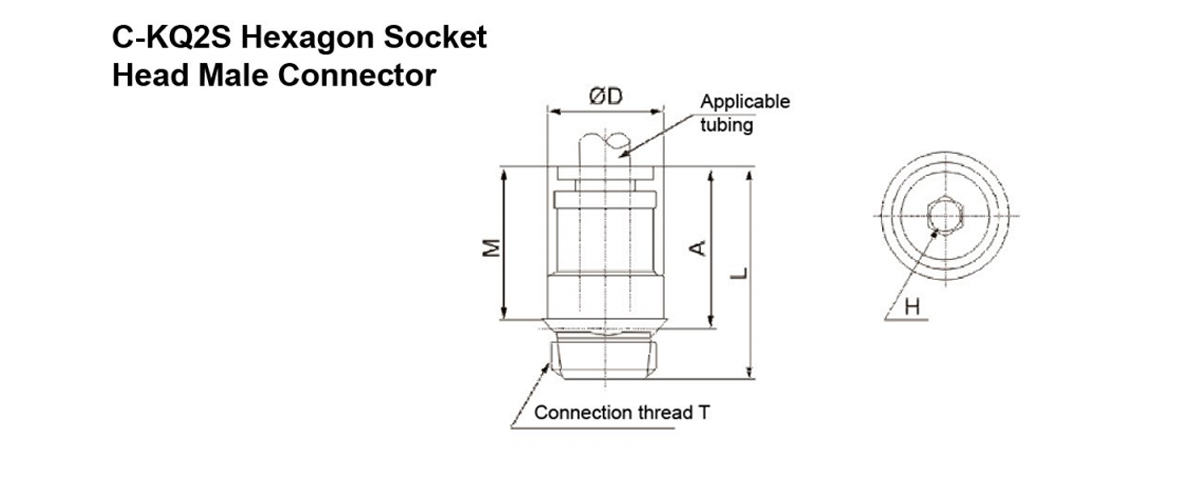

    Ø4 C-KQ2S04-01S 1/8 3 9.8 23 19 16 4.1 3.6 8
    Ø6 C-KQ2S06-01S 1/8 4 11.8 24 20 17 10.0 9.9 9
    C-KQ2S06-02S 1/4 13.8 24 18 10.7 10.0 15
    Ø8 C-KQ2S08-01S 1/8 5 14 28 24 18.5 17.2 16.2 12
    C-KQ2S08-02S 1/4 6 25.5 19.5 23.3 11
    C-KQ2S08-03S 3/8 17 27.5 21 24
    Ø10 C-KQ2S10-01S 1/8 5 17 30 26 21 17.2 16.2 18
    C-KQ2S10-02S 1/4 8 27.5 21.5 39.0 26.6 12
    C-KQ2S10-03S 3/8 21 19
    C-KQ2S10-04S 1/2 22 28 20 35
    Ø12 C-KQ2S12-02S 1/4 8 19 33.5 27.5 22 46.0 44.5 23
    C-KQ2S13-03S 3/8 10 29 22.5 60.0 18
    C-KQ2S12-04S 1/2 22 28 20 30
    Ø16 C-KQ2S16-03S 3/8 10 25.7 39 32.5 25 81 (81) 42
    C-KQ2S16-04S 1/2 12 35 27 113 (96) 34

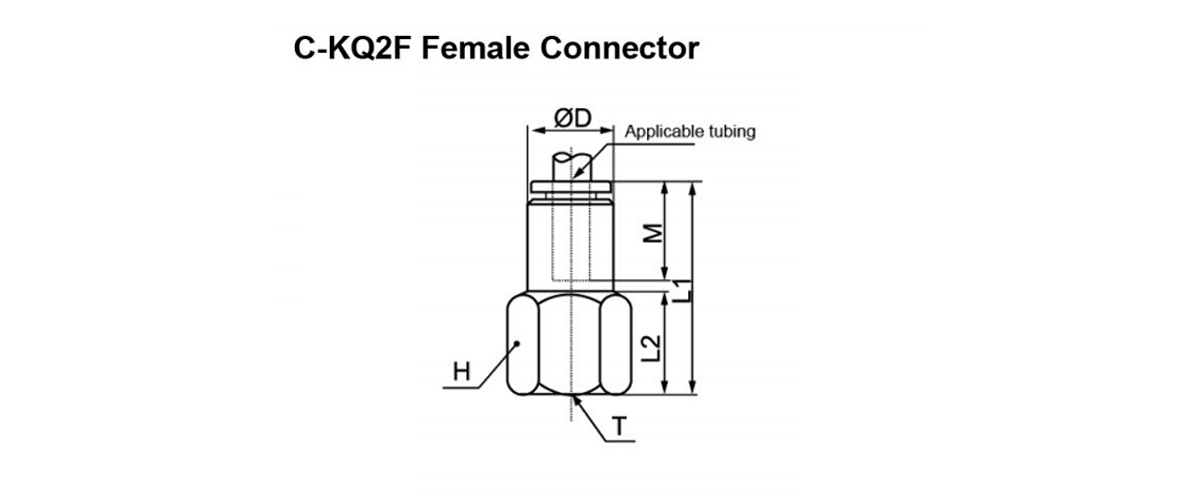

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2F04-01 1/8 14 10 27 11 16 5.6 4 15
    C-KQ2F04-02 1/4 17 31 14 23
    Ø6 C-KQ2F06-01 1/8 14 12 27.5 11 17 13.1 10.4 15
    C-KQ2F06-02 1/4 17 31 13 22
    C-KQ2F06-03 3/8 19 33.5 15 25
    Ø8 C-KQ2F08-01 1/8 14 14 29 11 18.5 26.1 18.0 17
    C-KQ2F08-02 1/4 17 32.5 13 24
    C-KQ2F08-03 3/8 19 33.5 14 24
    Ø10 C-KQ2F10-02 1/4 17 17 34.5 14 21 41.5 29.5 27
    C-KQ2F10-03 3/8 19 36.5 15 30
    Ø12 C-KQ2F12-02 1/4 19 19 35 14 22 58.3 46.1 36
    C-KQ2F12-03 3/8 37 31
    C-KQ2F12-04 1/2 24 41 18 52
    Ø16 C-KQ2F16-03 3/8 24 25.7 38 15 25 81 (81) 59
    C-KQ2F16-04 1/2 43 19 113 (96) 58


    Applicable Tubing O.D
    (mm)     		Model ØD L M Effective Area
    (mm²)
    Weight
    (g )
    ⓐ ⓑ 1 2 Nylon Urethane

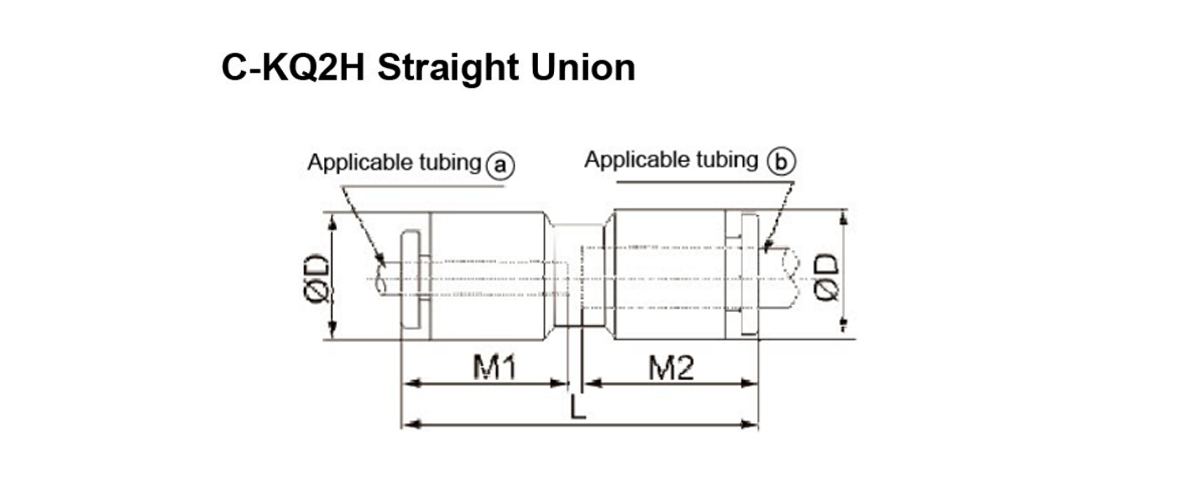

    Ø4 C-KQ2H04-00 10.4 32.5 16 5.6 4 3
    Ø6 C-KQ2H06-00 12.8 34.5 17 13.1 10.4 4
    Ø8 C-KQ2H08-00 15.2 38.5 18.5 26.1 18.0 6
    Ø10 C-KQ2H10-00 18.5 42.5 21 41.5 29.5 11
    Ø12 C-KQ2H12-00 20.9 44.5 22 58.3 46.1 14
    Ø16 C-KQ2H16-00 26.5 51 25 113 (96) 24
    Ø4 Ø6 C-KQ2H04-06 12.8 34.5 16 17 5.6 5.6 5
    Ø6 Ø8 C-KQ2H06-08 15.2 38.5 17 18.5 13.1 10.4 6
    Ø8 Ø10 C-KQ2H08-10 18.5 42 18.5 21 26.1 18.0 11
    Ø10 Ø12 C-KQ2H10-12 20.9 44.5 21 22 41.5 29.5 14
    Ø12 Ø16 C-KQ2H12-16 26.5 56.5 22 25 58.3 46.1 47


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M
    Effective Area
    (mm²)
    Weight
    (g)

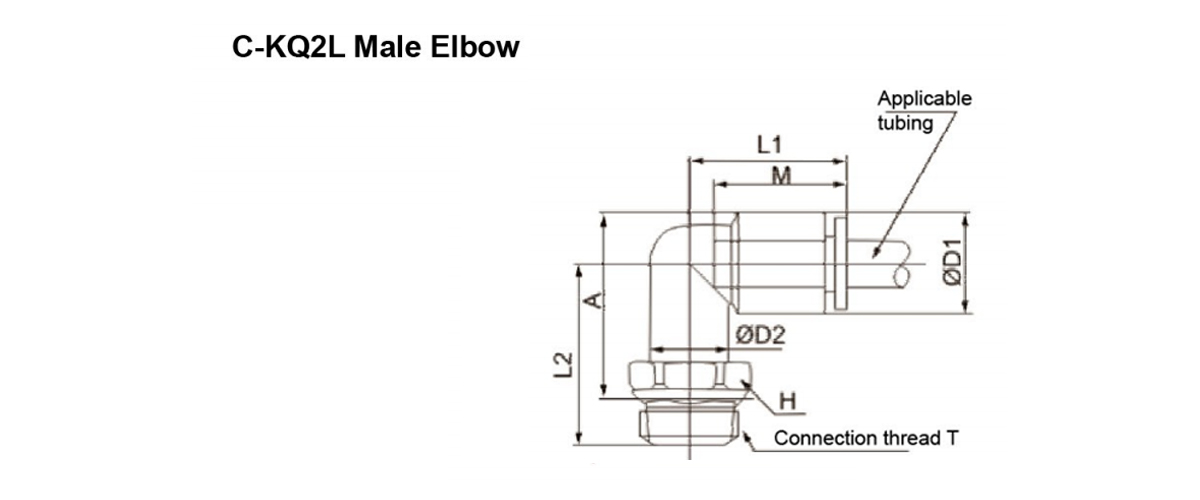

    Nylon Urethane

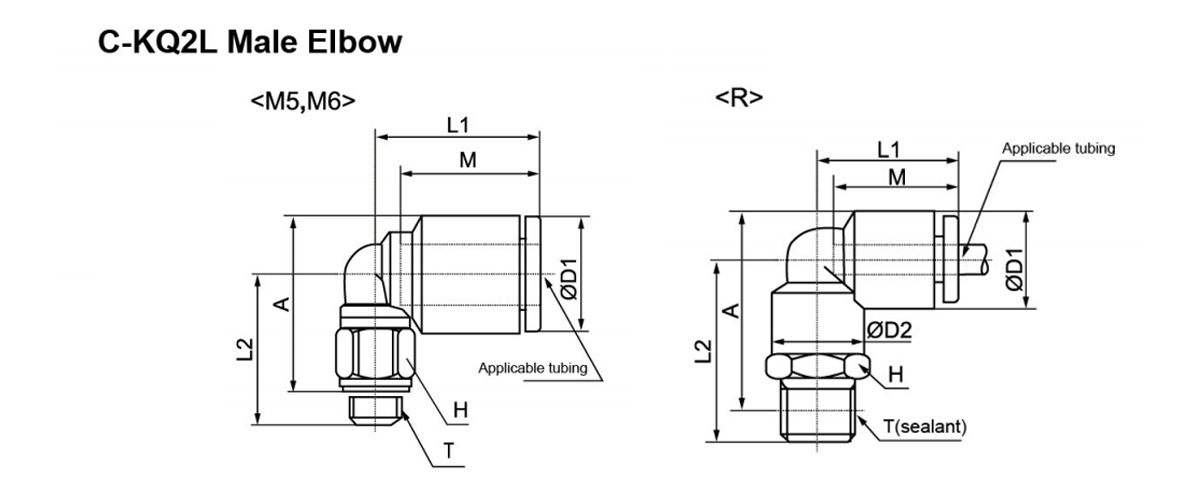

    Ø4 C-KQ2L04-01S 1/8 10 10.4 10 18 22 23 16 4.2 4.2 10
    C-KQ2L04-02S 1/4 14 26 25 19
    Ø6 C-KQ2L06-01S 1/8 10 12.8 10 20 23 25.5 17 11.4 9.0 12
    C-KQ2L06-02S 1/4 14 27 27.5 22
    C-KQ2L06-03S 3/8 17 29 29 33
    Ø8 C-KQ2L08-01S 1/8 12 15.2 12 23 24.5 28 18.5 21.6 14.9 13
    C-KQ2L08-02S 1/4 14 28.5 30 21
    C-KQ2L08-03S 3/8 17 30.5 31.5 35
    Ø10 C-KQ2L10-01S 1/8 17 18.5 17 26.5 27 32 21 21.6 14.9 25
    C-KQ2L10-02S 1/4 30 33 35.2 25.0 26
    C-KQ2L10-03S 3/8 32 34.5 36
    C-KQ2L10-04S 1/2 22 36 37 63
    Ø12 C-KQ2L12-02S 1/4 17 20.9 17 28.5 31 35.5 22 50.2 39.7 28
    C-KQ2L12-03S 3/8 33 37 38
    C-KQ2L12-04S 1/2 22 37 39.5 65
    Ø16 C-KQ2L16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 (71) 101
    C-KQ2L16-04S 1/2 41 46 100 (84) 105

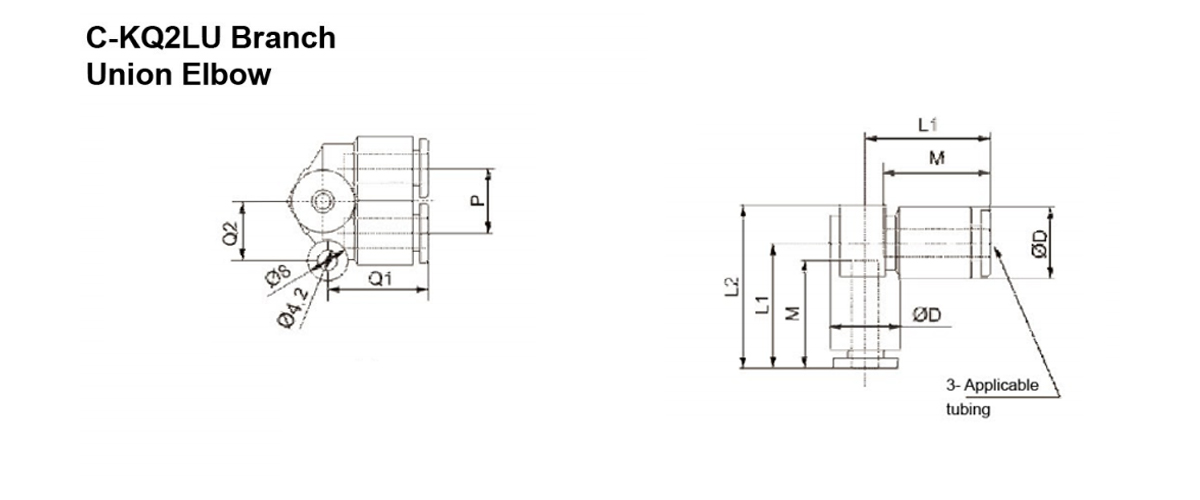

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

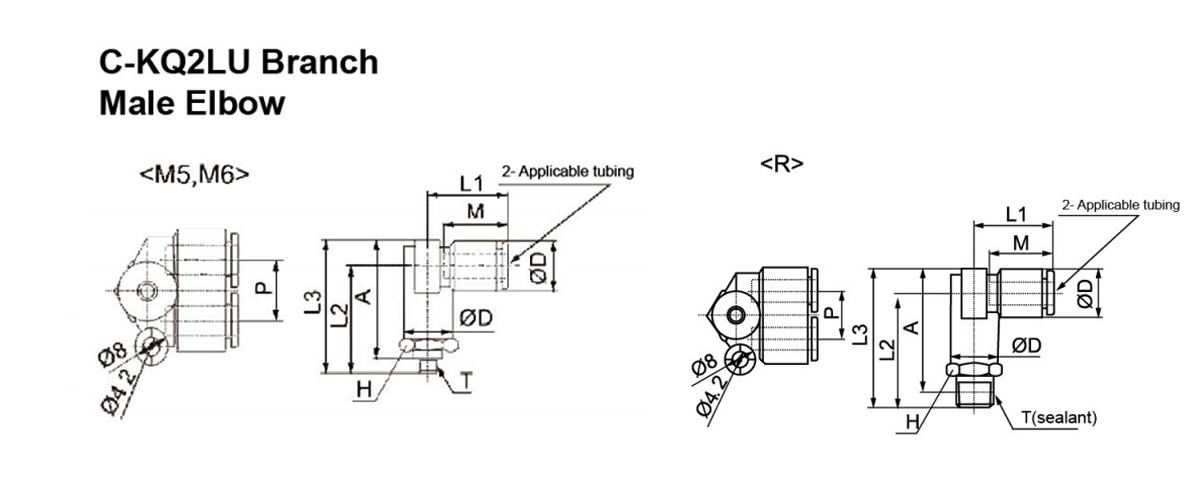

    Ø4 C-KQ2LU04-M5 M5×0.8 11 10.4 18.5 24 29.5 25.5 16 10.4 4.3 4.1 10
    C-KQ2LU04-M6 M6×1.0 24.5 30
    C-KQ2LU04-01S 1/8 26.5 32 27.5 6.0 4.1 12
    C-KQ2LU04-02S 1/4 14 30.5 36 30 21
    Ø6 C-KQ2LU06-M5 M5×0.8 13 12.8 21 26.5 33 29.5 17 12.8 4.3 4.3 13
    C-KQ2LU06-M6 M6×1.0 27 33.5
    C-KQ2LU06-01S 1/8 29.5 36 32 13.9 11.0 15
    C-KQ2LU06-02S 1/4 14 33 39.5 33.5 22
    C-KQ2LU06-03S 3/8 17 35 41.5 35 35
    Ø8 C-KQ2LU08-01S 1/8 17 15.2 24 34 41.5 38 18.5 15.2 26.3 18.2 27
    C-KQ2LU08-02S 1/4 37 44.5 38.5
    C-KQ2LU08-03S 3/8 38 45.5 39 35
    Ø10 C-KQ2LU10-02S 1/4 19 18.5 27 40 49.5 43.5 21 18.5 40.8 29.0 41
    C-KQ2LU10-03S 3/8 41 50.5 44 42
    C-KQ2LU10-04S 1/2 22 44.5 54 45.5 64
    Ø12 C-KQ2LU12-02S 1/4 22 20.9 29 42.5 53 47 22 20.9 57.2 45.2 57
    C-KQ2LU12-03S 3/8 43.5 54 47.5 58
    C-KQ2LU12-04S 1/2 46.5 57 49 65

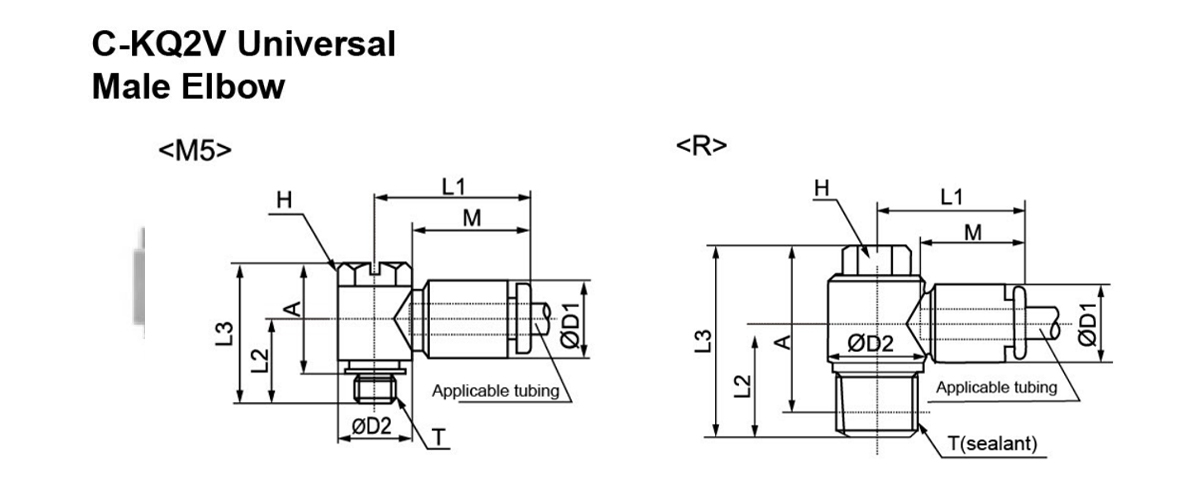

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)
    Weight
    ( g)
    Nylon Urethane

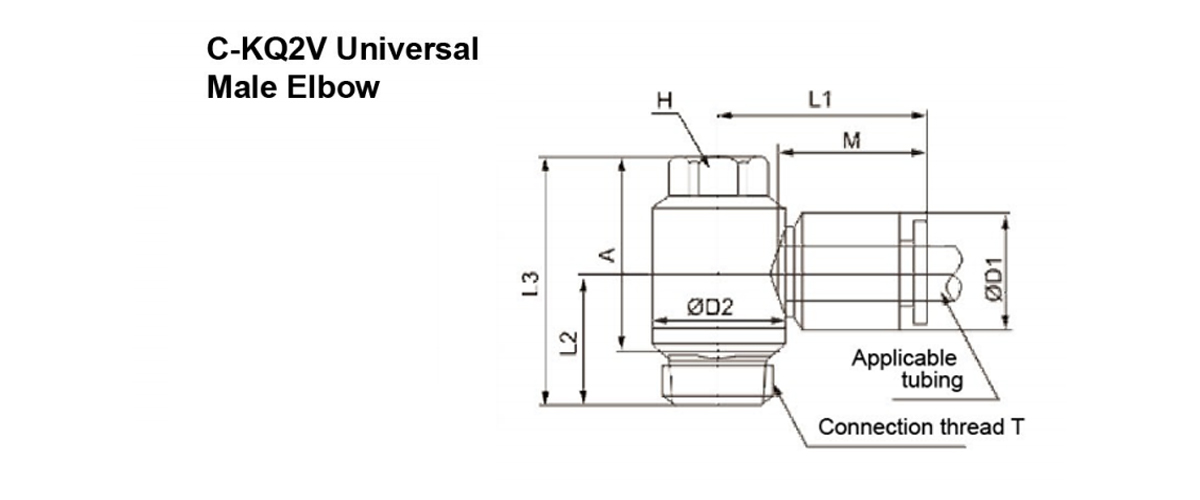

    Ø4 C-KQ2V04-M5 M5×0.8 8 10.4 9.8 20.5 11 18.5 15 16 2.9 2.9 6
    C-KQ2V04-01S 1/8 13.4 22 14.5 26.5 22.5 14
    Ø6 C-LQ2V06-M5 M5×0.8 8 12.8 9.8 23.5 12 18.5 15 17 3.8 3.8 7
    C-KQ2V06-01S 1/8 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2V06-02S 1/4 10 15.4 23.5 18.5 31 25 26
    Ø8 C-KQ2V08-01S 1/8 12 15.2 17.6 28.5 15.5 28.5 24.5 18.5 16 11.2 24
    C-KQ2V08-02S 1/4 18.5 31.5 25.5 30
    C-KQ2V08-03S 3/8 14 20.6 27.5 20.5 36.5 30 20.5 14.3 47
    Ø10 C-KQ2V10-02S 1/4 14 18.5 20.6 31 195 35.5 29.5 21 27 20.3 40
    C-KQ2V10-03S 3/8 20.5 36.5 30 49
    Ø12 C-KQ2V12-03S 3/8 17 20.9 25.2 34 22 38.5 32 22 39 30.8 63
    C-KQ2V12-04S 1/2 25 41.5 33.5 80

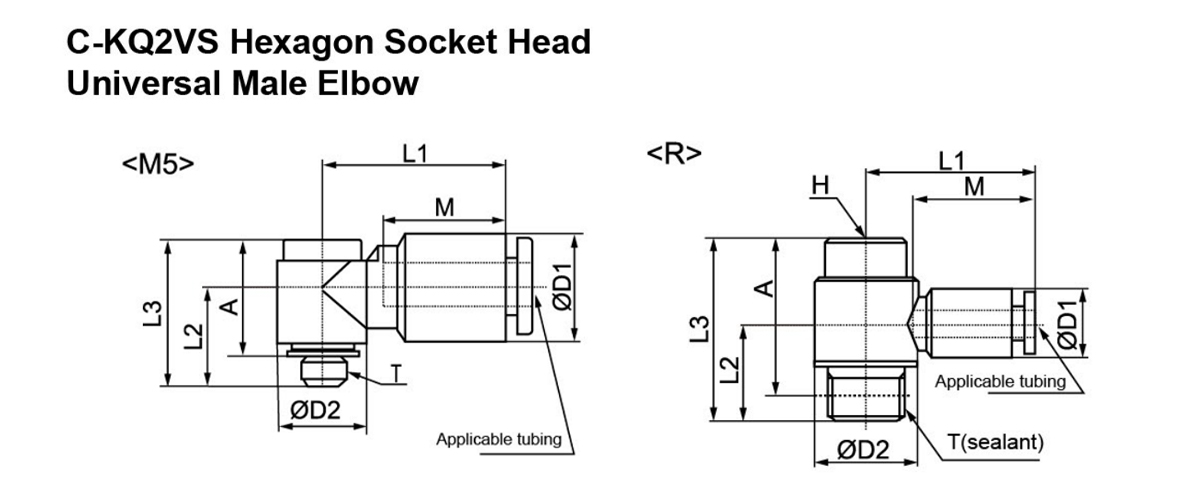

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T
    H
    Width
    across
    flats     		ØD1 ØD2 L1 L2 L3 A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2VS04-M5 M5 4 10.4 9.8 20.5 10.5 18 15 16 2.9 2.9 6
    C-KQ2VS04-01S 1/8 6 13.4 22 14.5 26.5 22.5 14
    Ø6 C-KQ2VS06-M5 M5 4 12.8 9.8 23.5 12 18 15 17 3.8 3.8 7
    C-KQ2VS06-01S 1/8 6 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2VS06-02S 1/4 15.3 23.5 18.5 27 21 22
    Ø8 C-KQ2VS08-01S 1/8 8 15.2 17.6 28.5 15.5 27 23 18.5 16 11.2 24
    C-KQ2VS08-02S 1/4 18.5 30 24 30
    C-KQ2VS08-03S 3/8 20.6 27.5 20.5 32.5 26 20.5 14.3 47
    Ø10 C-KQ2VS10-02S 1/4 8 18.5 20.6 31 19.5 31.5 25 21 27 20.3 32
    C-KQ2VS10-03S 3/8 20.5 32.5 26 39
    Ø12 C-KQ2VS12-03S 3/8 10 20.9 25.2 34 22 36 30 22 39 30.8 48
    C-KQ2VS12-04S 1/2 25 39 31 67

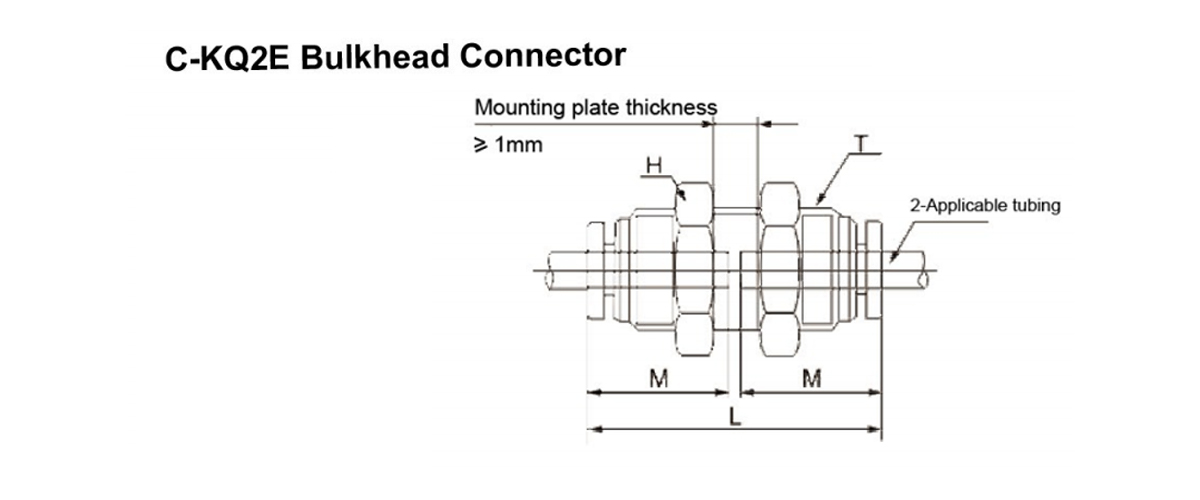

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T1 Mounting
    Thread
    T2     		H1
    Width
    Across
    Flats     		H2
    Width
    Across
    Flats     		L1 L2 Mount-
    ing Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

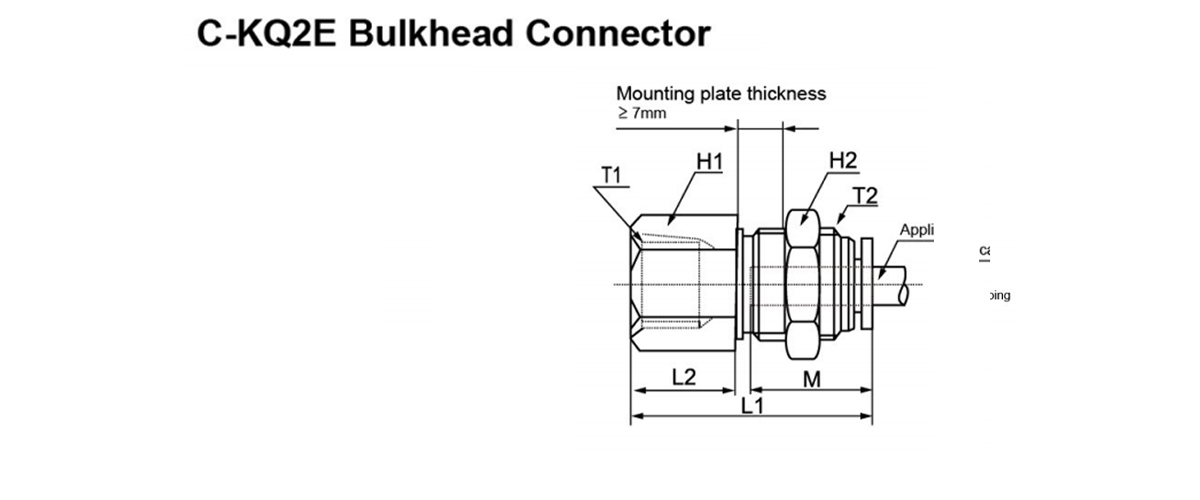

    Ø4 C-KQ2E04-01 1/8 M12×1 14 14 27.5 11 13 16 5.6 4 16
    C-KQ2E04-02 1/4 17 31 15 35
    Ø6 C-KQ2E06-01 1/8 M14×1 17 17 28 11 15 17 13.1 10.4 25
    C-KQ2E06-02 1/4 31.5 15 40
    C-KQ2E06-03 3/8 19 33.5 17 29
    Ø8 C-KQ2E08-01 1/8 M16×1 17 19 27.5 7.5 17 18.5 26.1 18.0 28
    C-KQ2E08-02 1/4 33 13 27
    C-KQ2E10-02 3/8 19 35 15 48
    Ø10 C-KQ2E10-02 1/4 M20×1 22 24 34.5 12.5 21 21 41.5 29.5 53
    C-KQ2E10-03 3/8 22 36.5 15 67
    Ø12 C-KQ2E12-03 3/8 M22×1 24 27 37 14 23 22 58.3 46.1 92
    C-KQ2E12-04 1/2 41 18 59
    Ø16 C-KQ2E16-03 3/8 M28×1.5 30 32 40 14 29 25 96 (96) 127
    C-KQ2E16-04 1/2 44 18 113 132


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Weight
    (g)

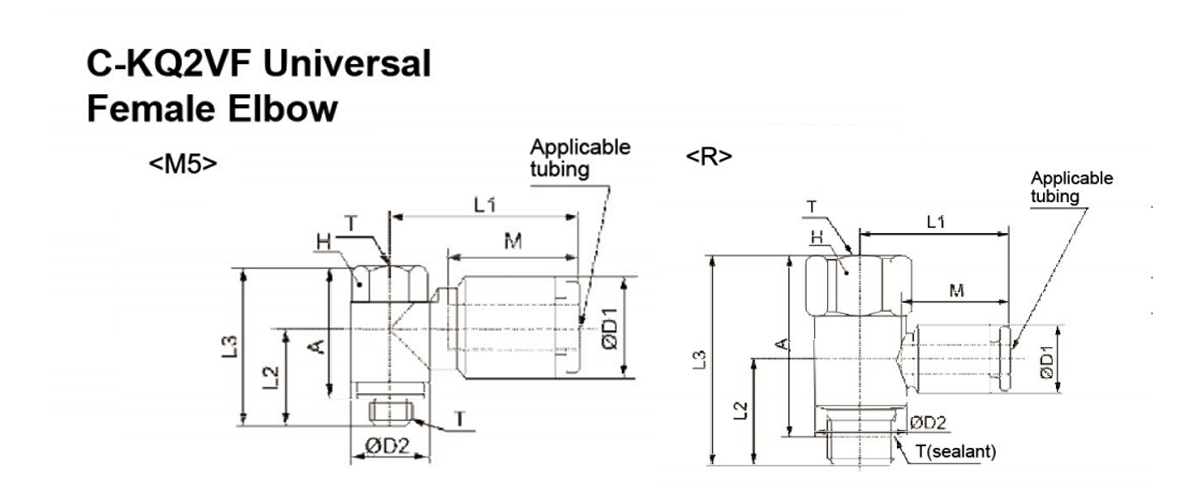

    Ø4 C-KQ2VF04-M5 M5×0.8 8 10.4 9.8 20.5 11 20 16 16 6
    C-KQ2VF04-01S 1/8 14 13.4 22 15.5 29.5 25.5 19
    Ø6 C-KQ2VF-06-M5 M5×0.8 8 12.8 9.8 23.5 12.5 20 16 17 7
    C-KQ2VF06-01S 1/8 14 13.4 24.5 15.5 29.5 25.5 19
    C-KQ2VF06-02S 1/4 17 17.6 25 20 38.5 32.5 36
    Ø8 C-KQ2VF08-01S 1/8 17 15.2 17.6 28.5 17 31 27 18.5 29
    C-KQ2VF08-02S 1/4 20 38.5 32.5 37
    C-KQ2VF08-03S 3/8 22 25.2 29.5 25.5 45.5 39 66
    Ø10 C-KQ2VF10-02S 1/4 19 18.5 20.6 31.5 22 41 35 21 48
    C-KQ2VF10-03S 3/8 22 25.2 24.5 45.5 39 68
    Ø12 C-KQ2VF12-03S 3/8 22 20.9 25.2 34 24.5 45.5 39 22 70

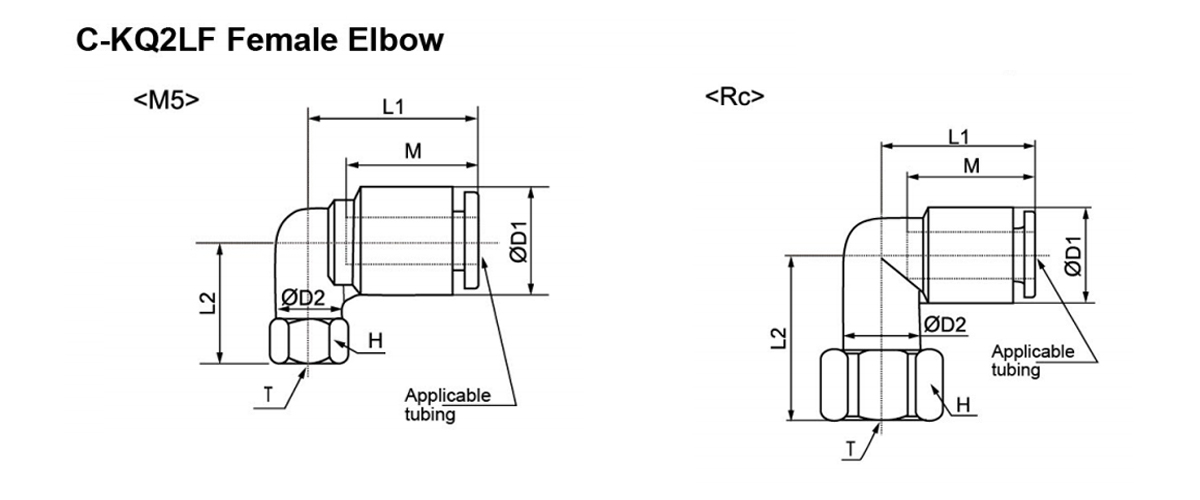

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LF04-M5 M5×0.8 8 10.4 8 18.5 14.5 16 3.5 3.5 5
    C-KQ2LF04-M6 M6×1.0 15.5
    C-KQ2LF04-01 1/8 14 10 21 4.2 4.2 13
    C-KQ2LF04-02 1/4 17 24.5 20
    Ø6 C-KQ2LF06-M5 M5×0.8 8 12.8 8 20.5 15 17 3.5 3.5 5
    C-KQ2LF06-M6 M6×1.0 16 6
    C-KQ2LF06-01 1/8 14 10 22 11.4 9.0 13
    C-KQ2LF06-02 1/4 17 25.5 20
    C-KQ2LF06-03 3/8 19 26
    Ø8 C-KQ2LF08-01 1/8 14 15.2 12 23.5 23 18.5 21.6 14.9 16
    C-KQ2LF08-02 1/4 17 26.5 22
    C-KQ2LF08-03 3/8 19 27 23
    Ø10 C-KQ2LF10-02 1/4 17 18.5 17 26.5 28 21 21.6 14.9 27
    C-KQ2LF10-03 3/8 19 28.5 35.2 25.0
    C-KQ2LF10-04 1/2 24 32.5 46
    Ø12 C-KQ2LF12-02 1/4 17 20.9 17 28.5 29.5 22 50.2 39.7 29
    C-KQ2LF12-03 3/8 19 30
    C-KQ2LF12-04 1/2 24 34 48


    Applicable Tubing O.D
    (mm)     		Model
    Connection Thread T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P
    Weight
    (g)

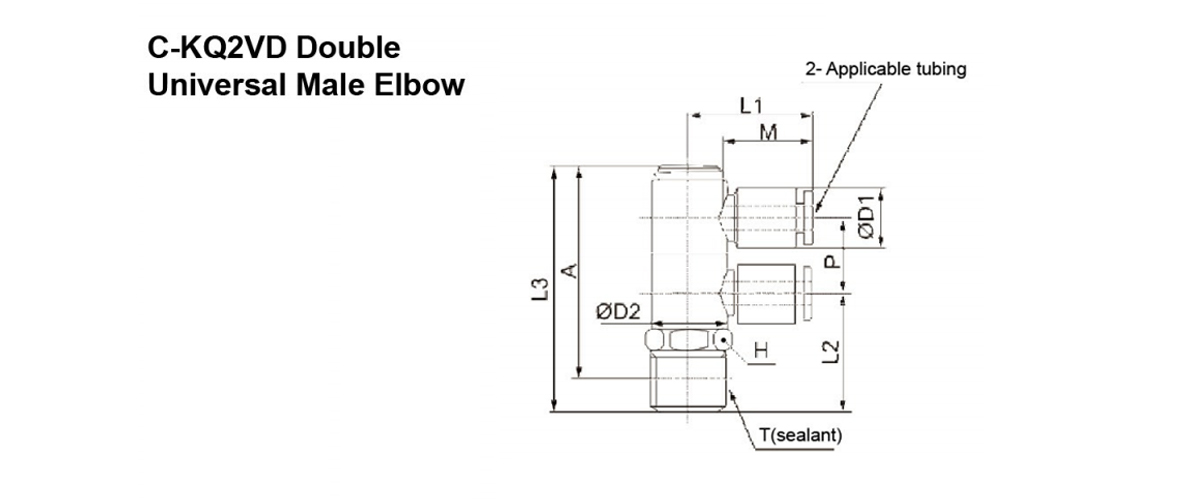

    Ø4 C-KQ2VD04-01S 1/8 14 10.4 13.4 22 18.5 41 37 16 13.4 23
    C-KQ2VD04-02S 1/4 21.5 44 38 29
    C-KQ2VD04-03S 3/8 17 23.5 46 40 42
    Ø6 C-KQ2VD06-01S 1/8 14 12.8 13.4 24.5 18.5 41 37 17 13.4 24
    C-KQ2VD06-02S 1/4 21.5 44 38 30
    C-KQ2VD06-03S 3/8 17 23.5 46 40 42
    Ø8 C-KQ2VD08-01S 1/8 19 15.2 17.6 28.5 21 48 44 18.5 15.9 53
    C-KQ2VD08-02S 1/4 24 51 45 51
    C-KQ2VD08-03S 3/8 25 52 45.5 60
    C-KQ2VD08-04S 1/2 21 28.5 55.5 47.5 82
    Ø10 C-KQ2VD10-02S 1/4 21 18.5 20.6 31.5 26.5 58 52 21 19.2 71
    C-KQ2VD10-03S 3/8 27.5 59 53 74
    C-KQ2VD10-04S 1/2 30.5 62 54 91
    Ø12 C-KQ2VD12-02S 1/4 26 20.9 25.2 34 28.5 64.5 58.5 21 21.6 118
    C-KQ2VD12-03S 3/8 29.5 65.5 59 113
    C-KQ2VD12-04S 1/2 32.5 68.5 60 125

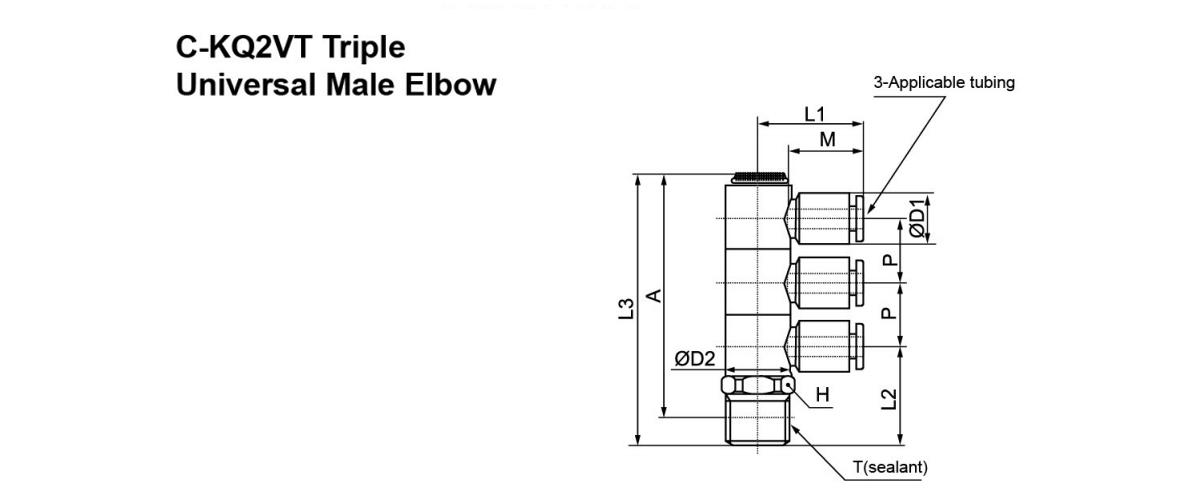

    Applicable Tubing O.D
    (mm)     		Model Connection Thread
    T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)
    Ø4 C-KQ2VT04-01S 1/8 14 10.4 13.4 22 18.5 54.5 50.5 16 13.4 29
    C-KQ2VT04-02S 1/4 21.5 57.5 51.5 34
    C-KQ2VT04-03S 3/8 17 23.5 59.5 53.5 48
    Ø6 C-KQ2VT06-01S 1/8 14 12.8 13.4 24.5 18.5 54.5 50.5 17 13.4 31
    C-KQ2VT06-02S 1/4 21.5 57.5 51.5 37
    C-KQ2VT06-03S 3/8 17 23.5 59.5 53.5 50
    Ø8 C-KQ2VT08-01S 1/8 19 15.2 17.6 28.5 21 64 60 18.5 15.9 71
    C-KQ2VT08-02S 1/4 24 67 61 66
    C-KQ2VT08-03S 3/8 25 68 61.5 75
    C-KQ2VT08-04S 1/2 21 28.5 71.5 63.5 96
    Ø10 C-KQ2VT10-02S 1/4 21 18.5 20.6 31.5 26.5 77.5 71.5 21 19.2 94
    C-KQ2VT10-03S 3/8 27.5 78.5 72
    C-KQ2VT10-04S 1/2 30.5 81.5 73.5 111
    Ø12 C-KQ2VT12-02S 1/4 26 20.9 25.2 34 28.5 86 80 21 21.6 153
    C-KQ2VT12-03S 3/8 29.5 87 80.5 143
    C-KQ2VT12-04S 1/2 32.5 90 82 154

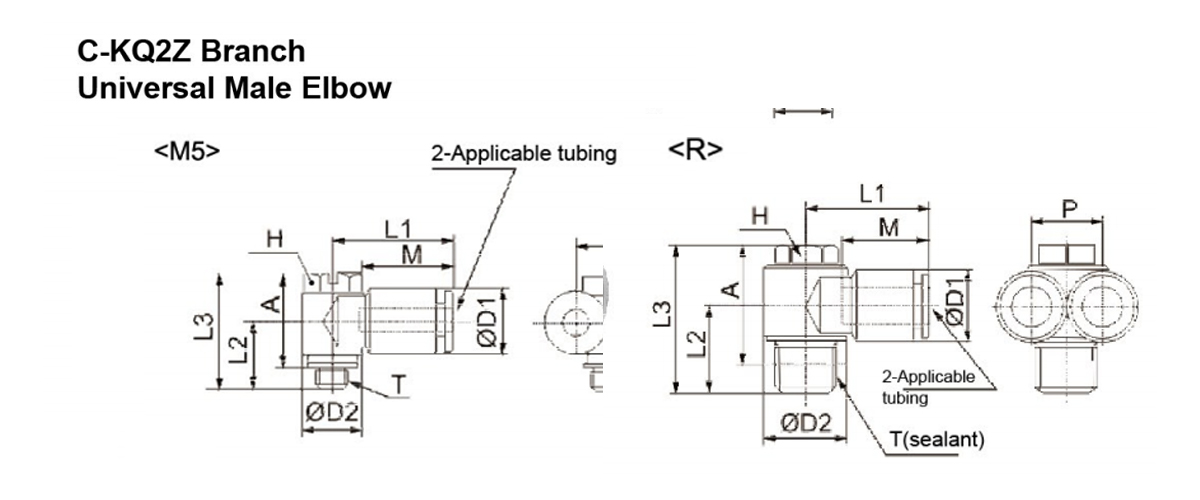

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2Z04-M5 M5×0.8 8 10.4 9.8 19.5 11 18.5 15 16 10.4 3.4 3.4 8
    C-KQ2Z04-01S 1/8 13.4 21 14.5 26.5 22.5 4.7 4.7 16
    Ø6 C-ZQ2Z06-01S 1/8 8 12.8 13.4 22 14.5 26.5 22.5 17 12.8 10.8 8.6 17
    C-ZQ2Z06-02S 1/4 14 20.6 25.5 19.5 35.5 29.5 39
    C-ZQ2Z06-03S 3/8 20.5 36.5 30 47
    Ø8 C-KQ2Z08-01S 1/8 12 15.2 17.6 26 15.5 28.5 24.5 18.5 15.2 20.5 14.2 27
    C-KQ2Z08-02S 1/4 18.5 31.5 25.5 33
    C-KQ2Z08-03S 3/8 14 20.6 27 20.5 36.5 30 49
    Ø10 C-KQ2Z10-02S 1/4 14 18.5 20.6 29 19.5 35.5 29.5 21 18.5 31.8 22.6 46
    C-KQ2Z10-03S 3/8 20.5 36.5 30 54
    Ø12 C-KQ2Z12-02S 3/8 17 20.9 25.2 32.5 22 39 32.5 22 20.9 44.6 35.3 71
    C-KQ2Z12-04S 1/2 25 42 34 88

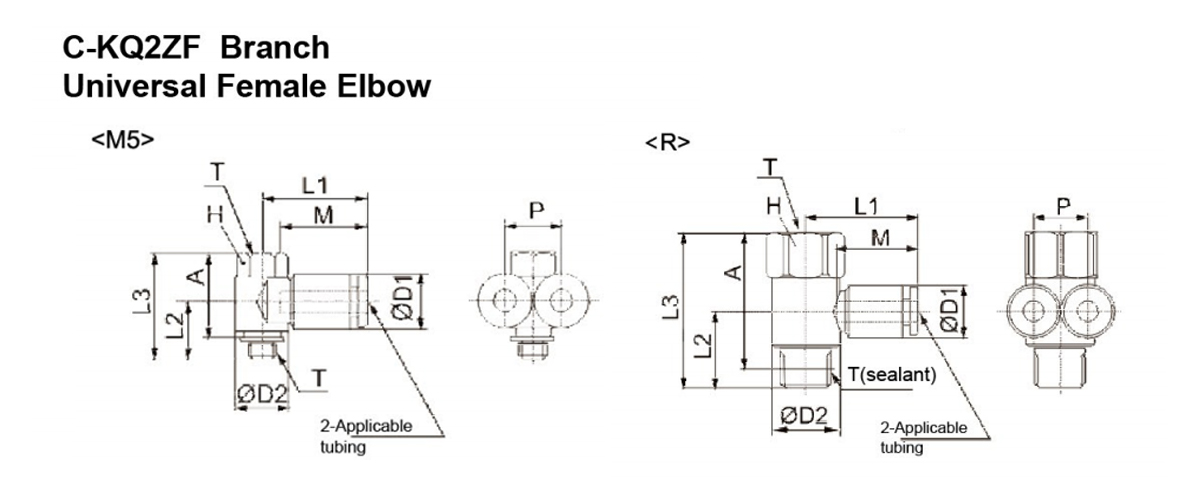

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)
    Ø4 C-KQ2ZF04-M5 M5×0.8 8 10.4 9.8 19.5 11 20 16.5 16 10.4 8
    C-KQ2ZF04-01S 1/8 14 13.4 21 15.5 29.5 25.5 21
    Ø6 C-KQ2ZF06-01S 1/8 14 12.8 13.4 22 15.5 29.5 25.5 17 12.8 21
    C-KQ2ZF06-02S 1/4 19 20.6 25.5 22 41 35 47
    Ø8 C-KQ2ZF08-01S 1/8 17 15.2 17.6 25.5 17 31 27 18.5 15.2 32
    C-KQ2ZF08-02S 1/4 19 20.6 27 22 41 35 49
    Ø10 C-KQ2ZF10-02S 1/4 19 18.5 20.6 29 22 41 35 21 18.5 54
    C-KQ2ZF10-03S 3/8 22 25.2 31.5 24.5 45.5 39 74
    Ø12 C-KQ2ZF12-03S 3/8 22 20.9 25.2 32.5 24.5 45.5 39 22 20.9 77

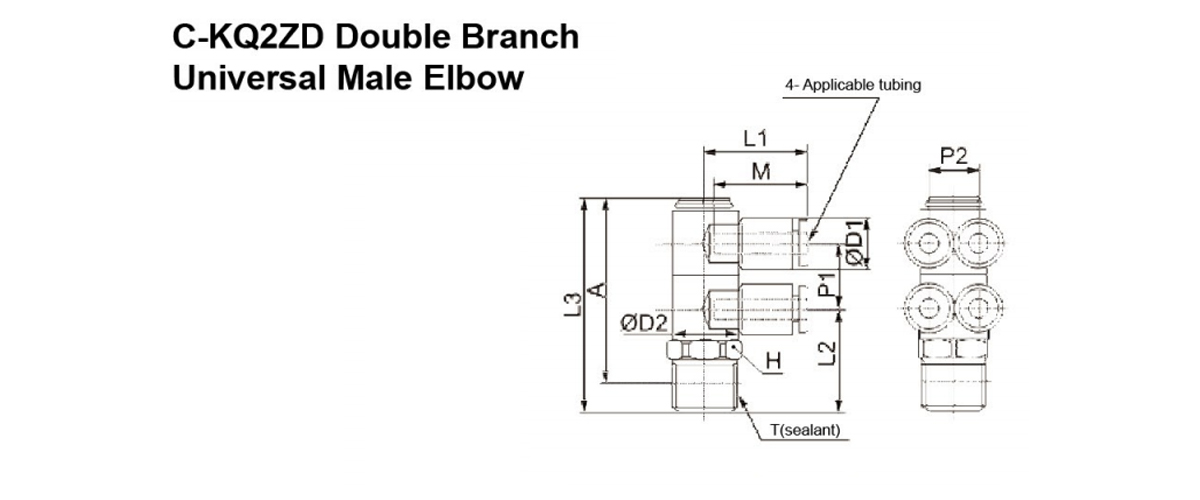

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2 Weight
    (g)
    Ø4 C-KQ2ZD04-01S 1/8 14 10.4 13.4 21 18.5 41 37 16 13.4 10.4 34
    C-KQ2ZD04-02S 1/4 21.5 44 38 40
    C-KQ2ZD04-03S 3/8 17 23.5 46 40 53
    Ø6 C-KQ2ZD06-01S 1/8 14 12.8 13.4 22 18.5 41 37 17 13.4 12.8 38
    C-KQ2ZD06-02S 1/4 21.5 44 38 43
    C-KQ2ZD06-03S 3/8 17 23.5 46 40 57
    Ø8 C-KQ2ZD08-01S 1/8 19 15.2 17.6 26 21 48 44 18.5 15.9 15.2 76
    C-KQ2ZD08-02S 1/4 24 51 45 72
    C-KQ2ZD08-03S 3/8 25 52 45.5 81
    C-KQ2ZD08-04S 1/2 21 28.5 55.5 47.5 102
    Ø10 C-KQ2ZD10-02S 1/4 21 18.5 20.6 29 26.5 58 52 21 19.2 18.5 111
    C-KQ2ZD10-03S 3/8 27.5 59 53
    C-KQ2ZD10-04S 1/2 30.5 62 54 128
    Ø12 C-KQ2ZD12-02S 1/4 26 20.9 25.2 32 28.5 64.5 58.5 22 21.6 20.9 178
    C-KQ2ZD12-03S 3/8 29.5 65.5 59 167
    C-KQ2ZD¹2-04S 1/2 32.5 68.5 60 179

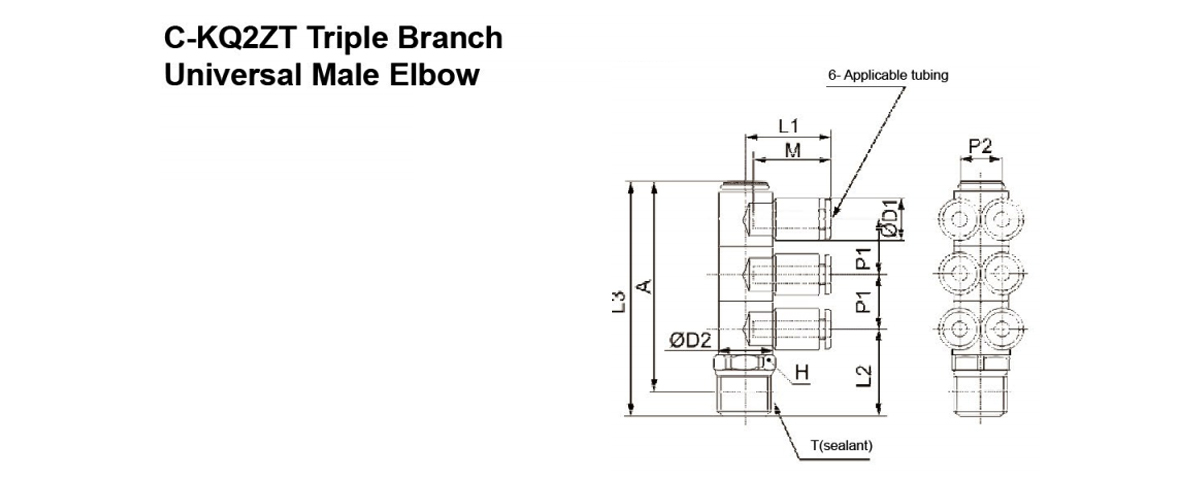

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2
    Weight
    (g)
    Ø4 C-KQ2ZT04-01S 1/8 14 10.4 13.4 21 18.5 54.5 50.5 16 13.4 10.4 25
    C-KQ2ZT04-02S 1/4 21.5 57.5 51.5 31
    C-KQ2ZT04-03S 3/8 17 23.5 59.5 53.5 44
    Ø6 C-KQ2ZT06-01S 1/8 14 12.8 13.4 22 18.5 54.5 50.5 17 13.4 12.8 27
    C-KQ2ZT06-02S 1/4 21.5 57.5 51.5 33
    C-KQ2ZT06-03S 3/8 17 23.5 59.5 53.5 46
    Ø8 C-KQ2ZT08-01S 1/8 19 15.2 17.6 26 21 64 60 18.5 15.9 15.2 56
    C-KQ2ZT08-02S 1/4 24 67 61 54
    C-KQ2ZT08-03S 3/8 25 68 61.5 62
    C-KQ2ZT08-04S 1/2 21 28.5 71.5 63.5 85
    Ø10 C-KQ2ZT10-02S 1/4 21 18.5 20.6 29 26.5 77.5 71.5 21 19.2 18.5 83
    C-KQ2ZT10-03S 3/8 27.5 78.5 72 85
    C-KQ2ZT10-04S 1/2 30.5 81.5 73.5 102
    Ø12 C-KQ2ZT12-02S 1/4 26 20.9 25.2 32 28.5 86 80 22 21.6 20.9 134
    C-KQ2ZT12-03S 3/8 29.5 87 80.5 130
    C-KQ2ZT12-04S 1/2 32.5 90 82 141

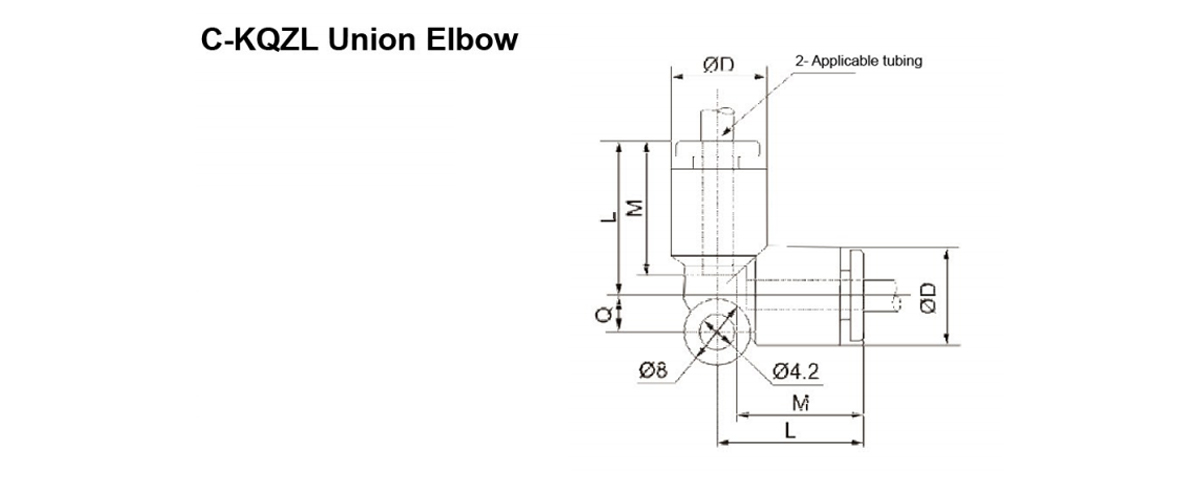

    Applicable Tubing O.D
    (mm)     		Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2L04-00 10.4 18 4.5 16 4.2 4.2 6
    Ø6 C-KQ2L06-00 12.8 20 5.3 17 11.4 9.0 6
    Ø8 C-KQ2L08-00 15.2 23 6 18.5 21.6 14.9 10
    Ø10 C-KQ2L10-00 18.5 26.5 6.8 21 35.2 25.0 17
    Ø12 C-KQ2L12-00 20.9 28.5 7.5 22 50.2 39.7 21
    Ø16 C-KQ2L16-00 26.5 34 10 25 100 (84) 29

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 Q1 Q2 M p Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LU04-00 10.4 18.5 24 18.5 10 16 10.4 6.0 4.1 6
    Ø6 C-KQ2LU06-00 12.8 21 27.5 20.5 12 17 12.8 13.9 11.0 8
    Ø8 C-KQ2LU08-00 15.2 24 32 24.5 14 18.5 15.2 26.3 18.2 15
    Ø10 C-KQ2LU10-00 18.5 27 36.5 28 16 21 18.5 40.8 29.0 25
    Ø12 C-KQ2LU12-00 20.9 29 40 30 18 22 20.9 57.2 45.2 32

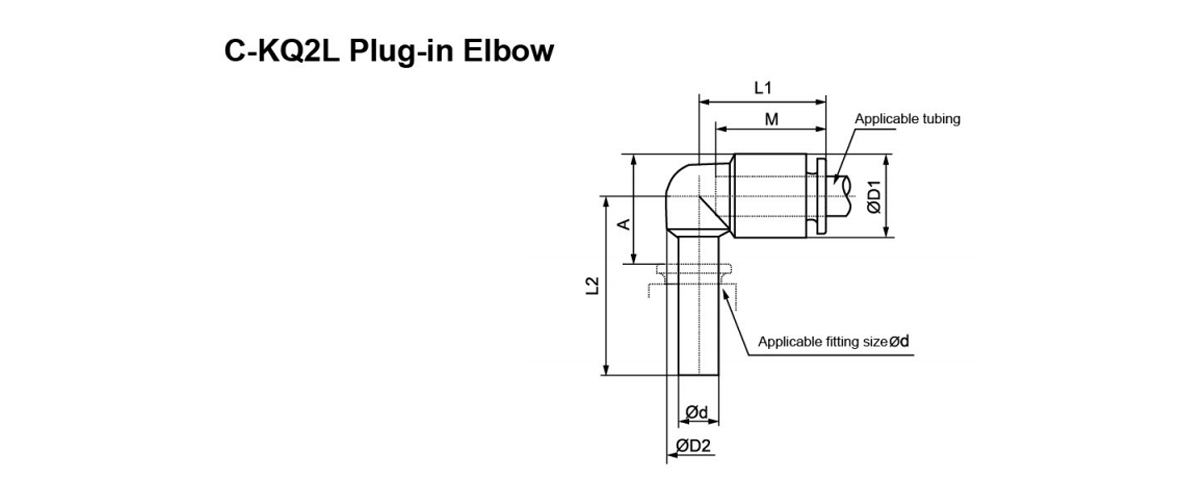

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2L04-99 10.4 8 18 25 14.5 16 4.2 4.2 3
    Ø6 Ø6 C-KQ2L06-99 12.8 10 20 27.5 17 17 11.4 9.0 3
    Ø8 Ø8 C-KQ2L08-99 15.2 12 22.5 31.5 21 18.5 21.6 14.9 5
    Ø10 Ø10 C-KQ2L10-99 18.5 14 25.5 35.5 23.5 21 35.2 25.0 9
    Ø12 Ø12 C-KQ2L12-99 20.9 16 27 37.5 26 22 50.2 39.7 10
    Ø16 Ø16 C-KQ2L16-99 26.5 20.9 34 53 41 25 100 (84) 42

    Applicable
    Tubing O.D
    (mm)
    Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

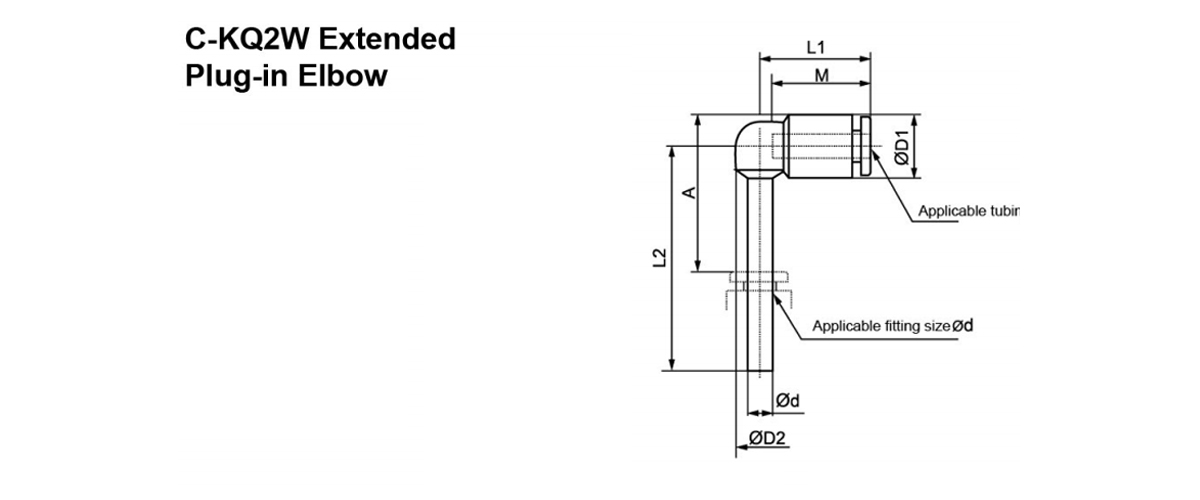

    Ø4 Ø4 C-KQ2W04-99 10.4 10 18.1 32.1 21.5 16 4.2 4.2 13
    Ø6 Ø6 C-KQ2W06-99 12.8 10 20 34.5 24 17 11.4 9.0 14
    Ø8 Ø8 C-KQ2W08-99 15.2 12 23.1 39.5 29 18.5 21.6 14.9 16
    Ø10 Ø10 C-KQ2W10-99 18.5 17 26.6 45.5 33.5 21 35.2 25.0 19
    Ø12 Ø12 C-KQ2W12-99 20.9 17 28.6 47.5 36 22 50.2 39.7 23

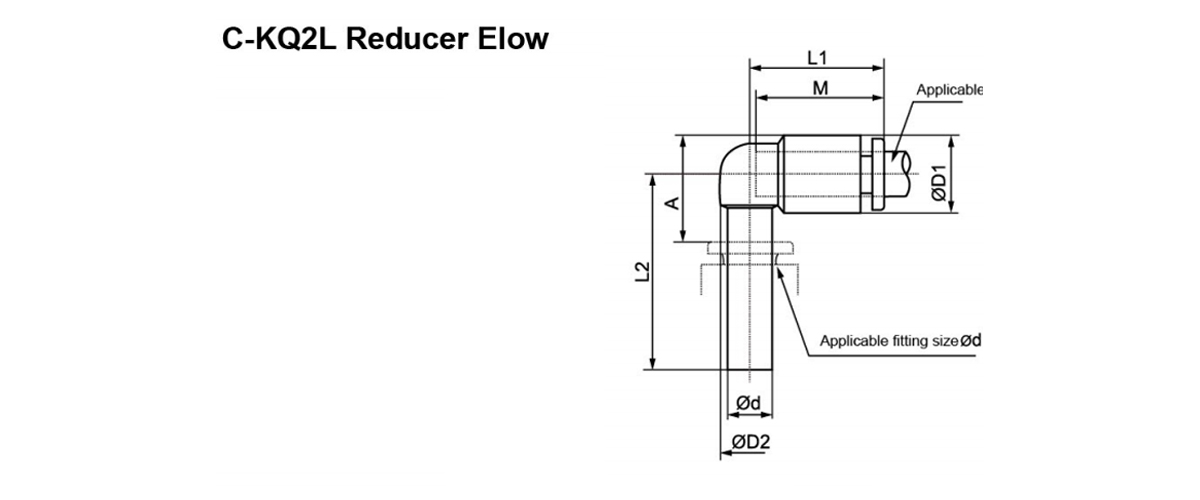

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2L04-06(99) 10.4 8 18 33 21.5 16 4.2 4.2 13
    Ø8 C-KQ2L04-08(99) 10 42 29 21
    Ø6 Ø8 C-KQ2L06-08(99) 12.8 10 19.5 37.5 25 17 11.4 9.0 22
    Ø10 C-KQ2L06-10(99) 20 45.5 31 29
    Ø8 Ø10 C-KQ2L08-10(99) 15.2 12 22.5 41.5 28.5 18.5 21.6 14.9 30
    Ø12 C-KQ2L08-12(99) 23 48.5 34 37
    Ø10 Ø12 C-KQ2L10-12(99) 18.5 17 26.5 52 39.5 21 35.2 25.0 39
    Ø12 Ø16 C-KQ2L12-16(99) 20.9 17 28.5 59.5 44.5 22 50.2 39.7 63

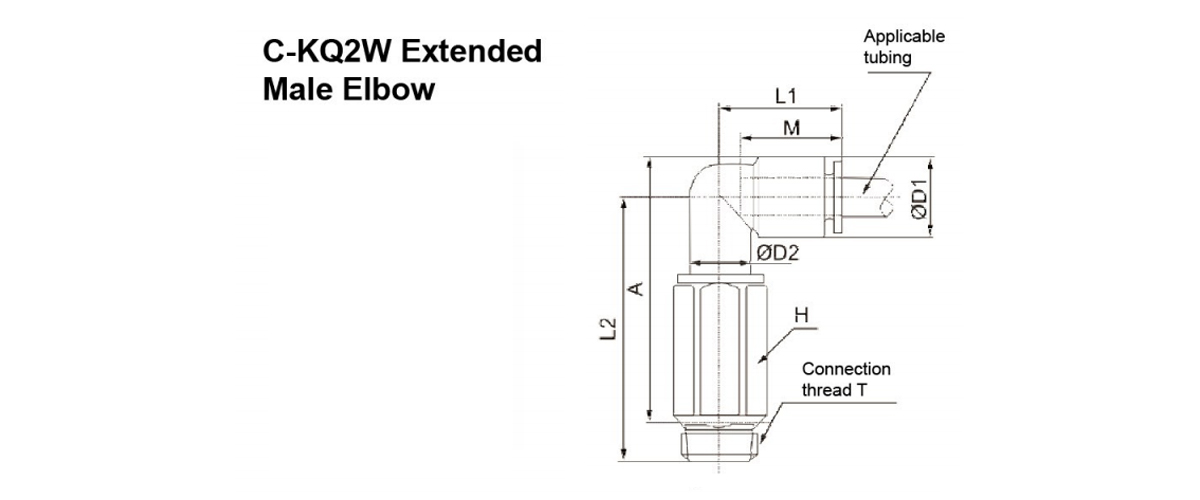

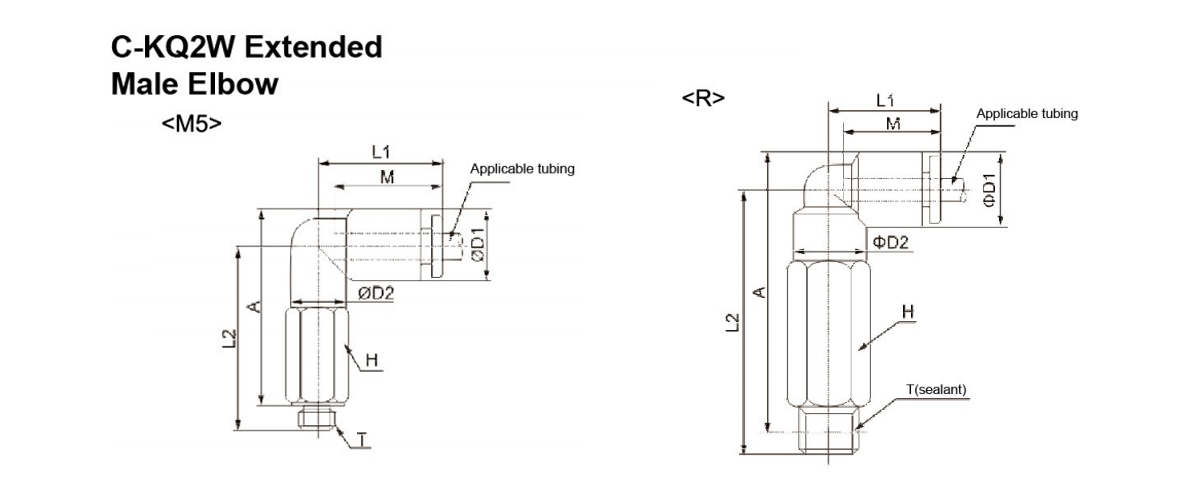

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2W04-01S 18 10 10.4 10 18 37.5 38.5 16 4.0 4.0 23
    C-KQ2W04-02S 1/4 14 43.5 42.5 38
    Ø6 C-KQ2W06-01S 1/8 10 12.8 10 20 40 42.5 17 10.9 8.6 26
    C-KQ2W06-02S 1/4 14 46 46.5 41
    C-KQ2W06-03S 3/8 17 48 48 67
    Ø8 C-KQ2W08-01S 18 12 15.2 12 23 43.5 47 18.5 20.5 14.2 30
    C-KQ2W08-02S 1/4 14 49.5 51 47
    C-KQ2W08-03S 3/8 17 51.5 52.5 74
    Ø10 C-KQ2W10-02S 1/4 17 18.5 17 26.5 58.5 59.5 21 33.5 23.8 66
    C-KQ2W10-03S 8 58.5 61 76
    C-KQ2W10-04S 1/2 22 65 66 145
    Ø12 C-KQ2W12-02S 1/4 17 20.9 17 28.5 57.5 62 22 47.7 37.7 68
    C-KQ2W12-03S 3/8 59.5 63.5 78
    C-KQ2W12-04S 1/2 22 66 68.5 147
    Ø16 C-KQ2W16-03S 3/8 22 26.5 20.9 34 69.5 76 25 71 (71) 101
    C-KQ2W16-04S 72 75 80 100 (84) 105

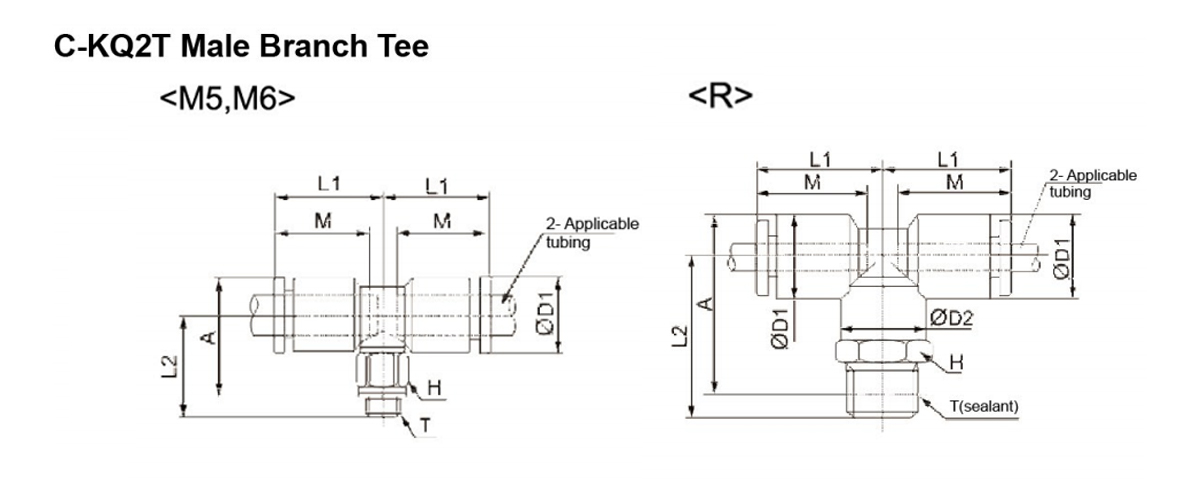

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø3.2 C-KQ2T23-01S 1/8 10 9.6 10 17.5 21.5 22.5 15.5 3.4 2.9 10
    C-KQ2T23-02S 1/4 4 25.5 24.5 20
    Ø4 C-KQ2T04-01S 1/8 10 10.4 10 18 22 23 16 6.0 4.1 13
    C-KQ2T04-02S 1/4 14 26 25 19
    Ø6 C-KQ2T06-01S 1/8 10 12.8 10 20 23 25.5 17 13.9 11.0 12
    C-KQ2T06-02S 1/4 14 27 27.5 20
    C-KQ2T06-03S 3/8 17 29 29 34
    Ø8 C-KQ2T08-01S 1/8 12 15.2 12 23 24.5 28 18.5 26.3 18.2 14
    C-KQ2T08-02S 1/4 14 28.5 30 22
    C-KQ2T08-03S 3/8 17 30.5 31.5 36
    Ø10 C-KQ2T10-01S 1/8 17 18.5 17 26.5 27 32 21 40.8 29.0 31
    C-KQ2T10-02S 1/4 30 33 29
    C-KQ2T10-03S 3/8 32 34.5 39
    C-KQ2T10-04S 1/2 22 36 37 66
    Ø12 C-KQ2T12-02S 1/4 17 20.9 17 28.5 31 35.5 22 57.2 45.2 31
    C-KQ2T12-03S 3/8 33 37 41
    C-KQ2T12-04S 1/2 22 37 39.5 38
    Ø16 C-KQ2T16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 71 112
    C-KQ2T16-04S 1/2 40.5 46 100 100 116

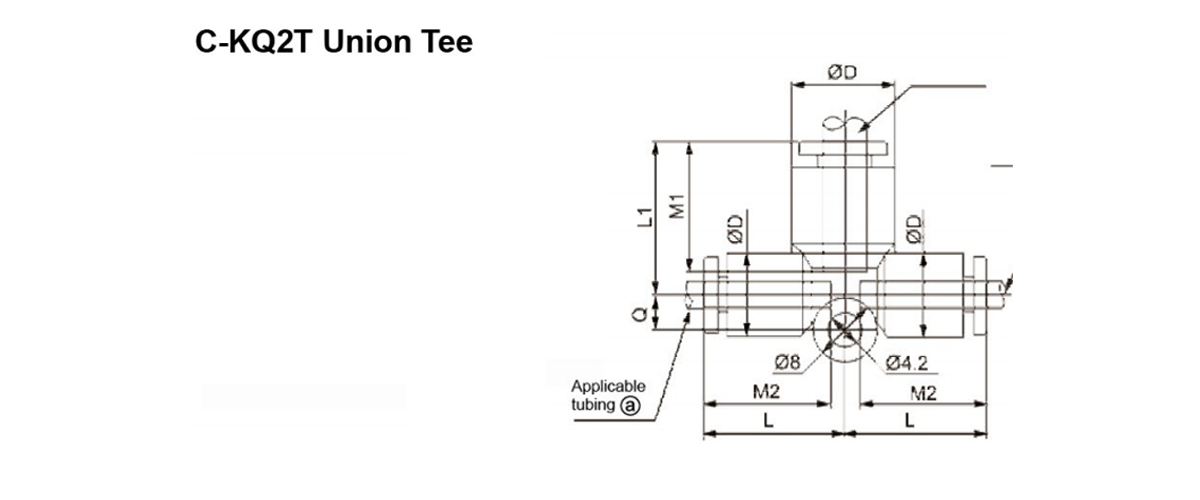

    Applicable Tubing O.D (mm) Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2T04-00 10.4 18 4.5 16 6.4 4.4 7
    Ø6 C-KQ2T06-00 12.8 20 5.3 17 13.4 10.6 10
    Ø8 C-KQ2T08-00 15.2 23 6 18.5 25.6 17.7 15
    Ø10 C-KQ2T10-00 18.5 26.5 6.8 21 40 28.4 25
    Ø12 C-KQ2T12-00 20.9 28.5 7.5 22 57.4 45.4 29
    Ø16 C-KQ2T16-00 26.5 34 10 25 100 (84) 40
    Ø4 Ø6 C-KQ2T04-06 12.8 20 4.5 17 16 7.1 6.5 5
    Ø6 Ø8 C-KQ2T06-08 15.2 23 5.3 18.5 17 16.4 16.4 8
    Ø8 Ø10 C-KQ2T08-10 18.5 26.5 6 21 18.5 36 27.2 14
    Ø10 Ø12 C-KQ2T10-12 20.9 28.5 6.8 22 21 56 44.5 21
    Ø12 Ø16 C-KQ2T12-16 26.5 34 10 25 22 108.5 (92.2) 88
    Ø6 Ø4 C-KQ2T06-04 120.8 20 5.3 16 17 6.4 4.4 10
    Ø8 Ø6 C-KQ2T08-06 15.2 23 6 17 18.5 13.4 10.6 15
    Ø10 Ø8 C-KQ2T10-08 18.5 26.5 7.5 18.5 21 25.6 17.7 25
    Ø12 Ø10 C-KQ2T12-10 20.9 28.5 7.5 21 22 40 28.4 29
    Ø16 Ø12 C-KQ2T16-12 26.5 34 10 22 25 57.4 45.4 90

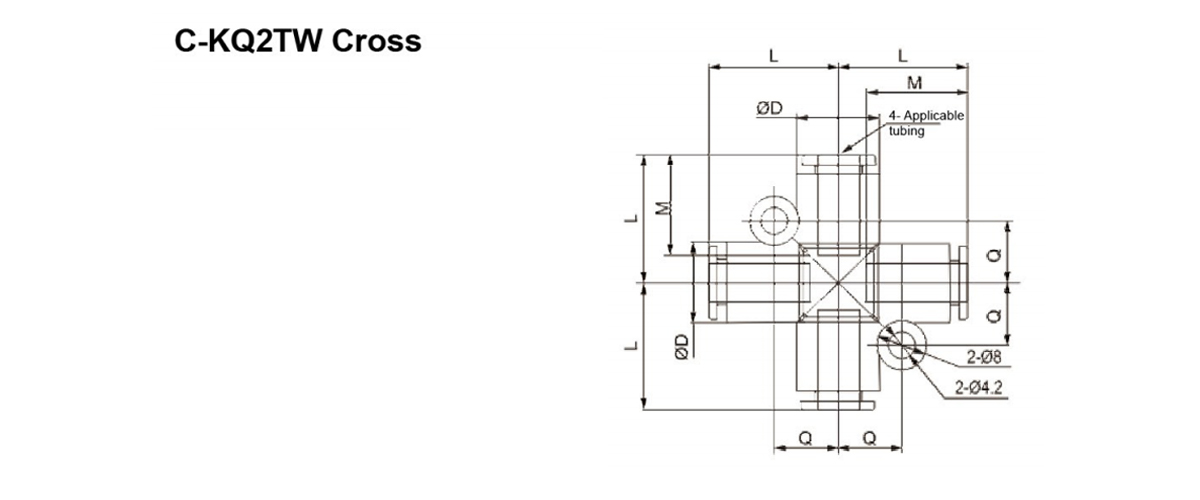

    Applicable Tubing O.D (mm) Model ØD L Q M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2TW04-00 10.4 18 8.7 16 6.4 4.4 9
    Ø6 C-KQ2TW06-00 12.8 20 9.9 17 13.4 10.6 13
    Ø8 C-KQ2TW08-00 15.2 23 11.1 18.5 25.6 17.7 20
    Ø10 C-KQ2TW10-00 18.5 26.5 12.8 21 40 28.4 33
    Ø12 C-KQ2TW12-00 20.9 28.5 13.9 22 57.4 45.4 39

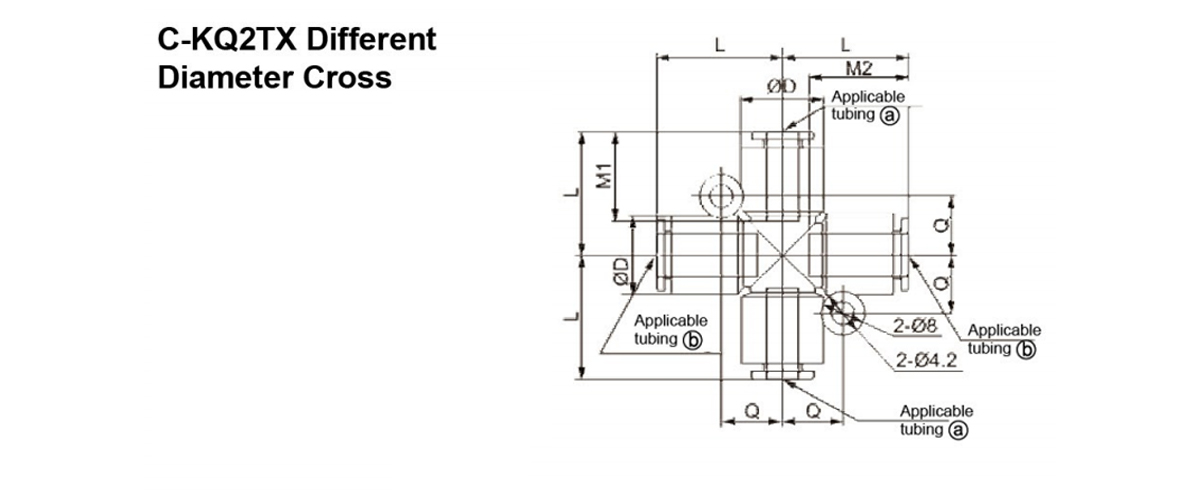

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TX06-08 15.2 23 11.1 18.5 17 13.4 10.6 13
    Ø8 Ø10 C-KQ2TX08-10 18.5 26.5 12.8 21 18.5 25.6 17.7 27
    Ø10 Ø12 C-KQ2TX10-12 20.9 28.5 13.9 22 21 40 28.4 36

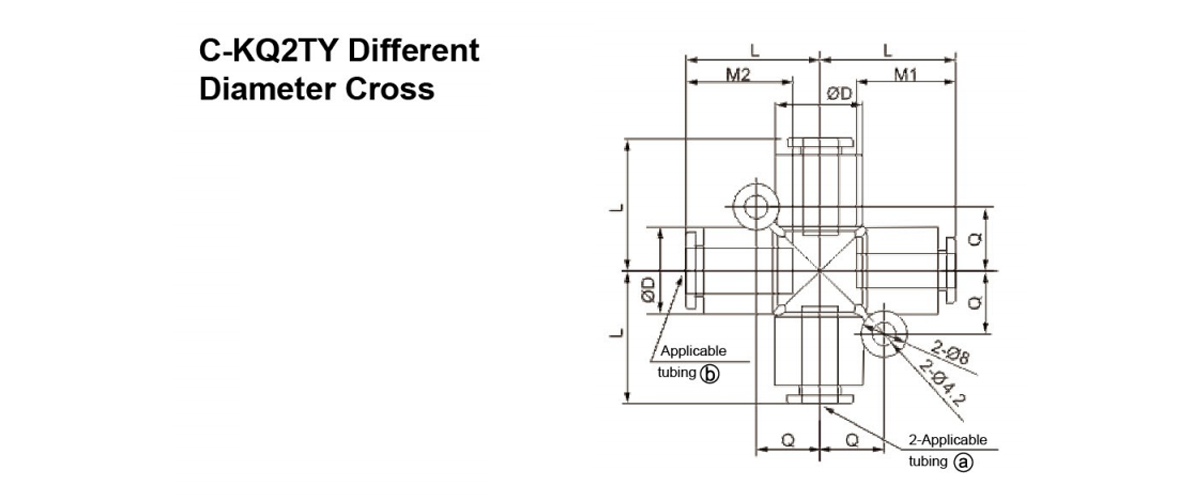

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TY06-08 15.2 23 11.1 17 18.5 13.4 10.6 15
    Ø8 Ø10 C-KQ2TY08-10 18.5 26.5 12.8 18.5 21 25.6 17.7 23
    Ø10 Ø12 C-KQ2TY10-12 20.9 28.5 13.9 21 22 40 28.4 35

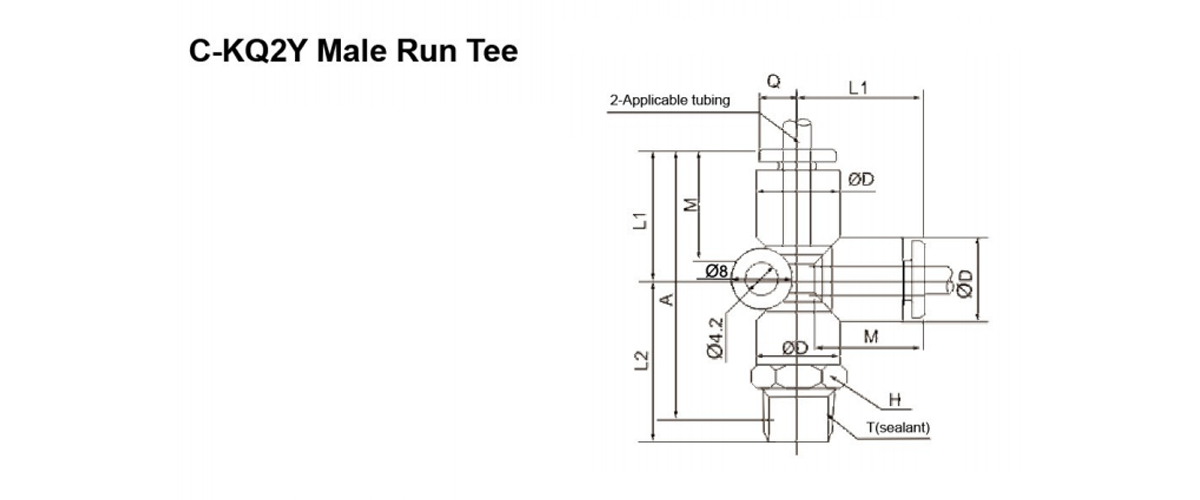

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD Q L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

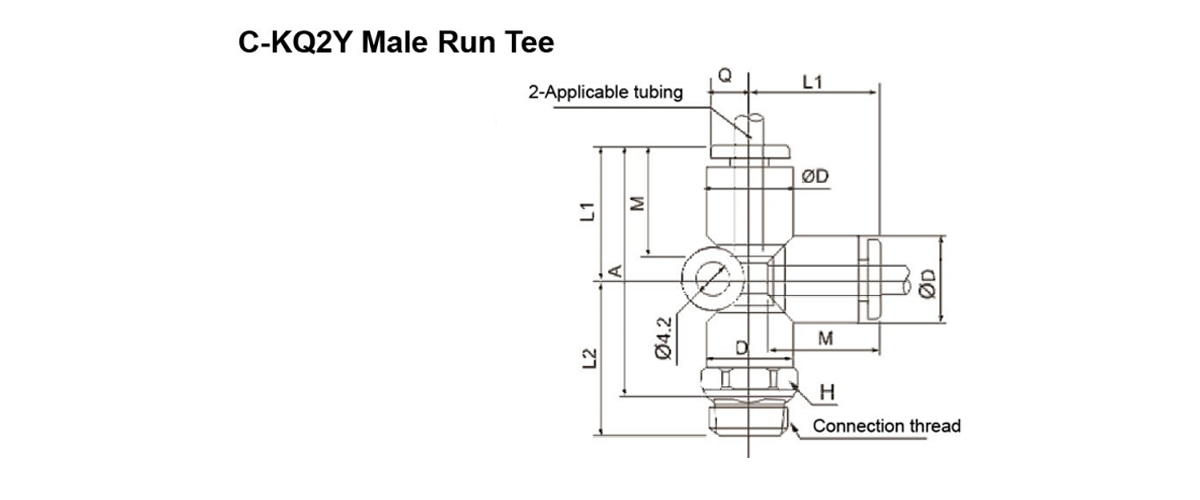

    Ø04 C-KQ2Y 04-01S R1/8 14 10.5 4.6 18.1 22.1 36.1 16.1 6.4 4.4 13
    C-KQ2Y 04-02S R1/4 26.1 38.1 19
    Ø06 C-KQ2Y 06-01S R1/8 12.9 5.4 20.1 23.1 39.1 17.1 13.4 10.6 12
    C-KQ2Y 06-02S R1/4 27.1 41.1 20
    C-KQ2Y 06-03S R3/8 29.1 42.6 34
    Ø08 C-KQ2Y 08-01S R1/8
    17     		15.3 6.1 23.1 24.6 43.6 18.6 25.6 12.7 14
    C-KQ2Y 08-02S R1/4 28.6 45.6 22
    C-KQ2Y 08-03S R3/8 30.6 47.2 36
    Ø10 C-KQ2Y 10-01S R1/8 19 18.6 6.9 26.6 27.1 49.7 21 40 28.4 31
    C-KQ2Y 10-02S R1/4 30.1 50.7 29
    C-KQ2Y 10-03S R3/8 32.1 52.1 39
    C-KQ2Y 10-04S R1/2 22 36.1 54.6 66
    Ø12 C-KQ2Y 12-02S R1/4 21 7.6 28.6 31.1 53.6 22.1 57.4 45.4 31
    C-KQ2Y 12-03S R3/8 33.1 55.2 41
    C-KQ2Y 12-04S R1/2 37.1 57.6 68

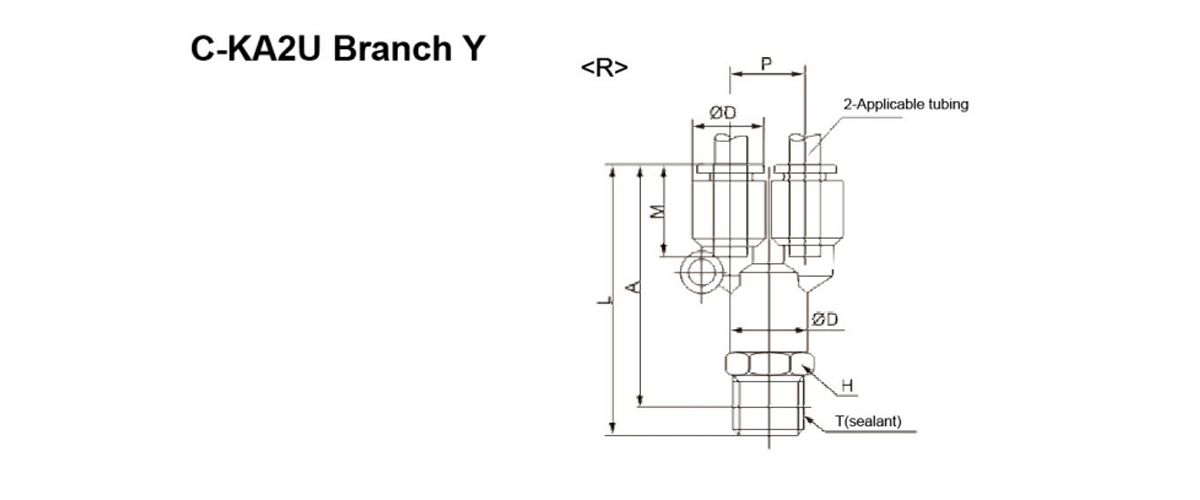

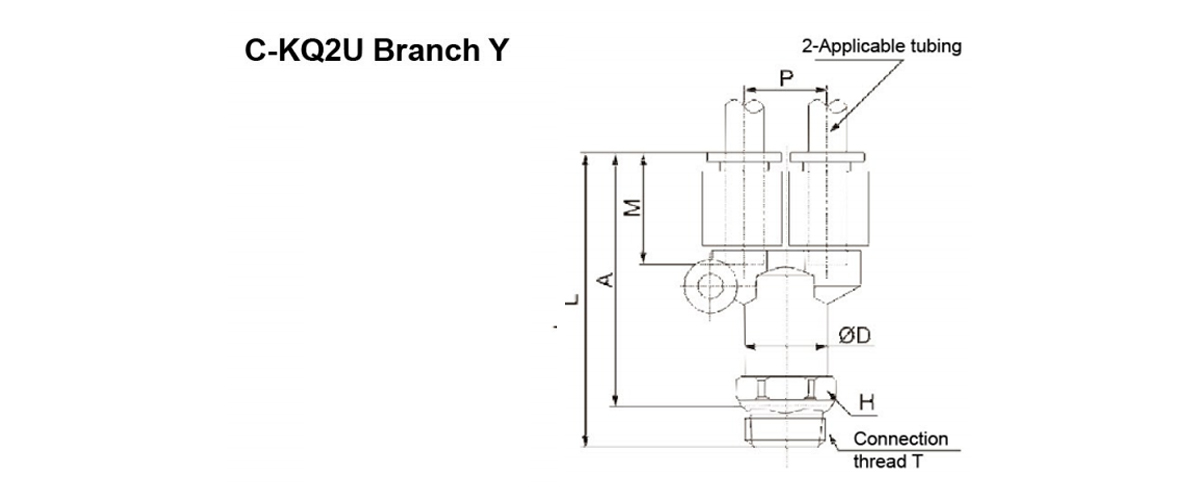

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

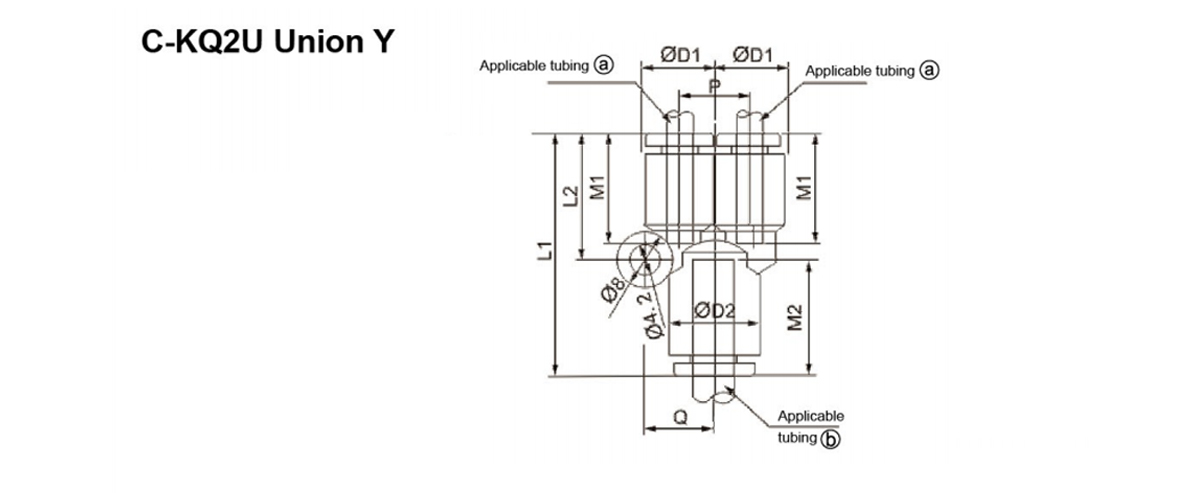

    Ø4 C-KQ2U04-01S 1/8 11 10.4 42 10.4 38 16 4.2 4.2 11
    C-KQ2U04-02S 1/4 14 46 40 20
    Ø6 C-KQ2U06-01S 1/8 13 12.8 45.5 12.8 41.5 17 13.4 10.6 11
    C-KQ2U06-02S 1/4 14 49 43 21
    C-KQ2U06-03S 3/8 17 51 44.5 34
    Ø8 C-KQ2U08-01S 1/8 17 15.2 52.5 15.2 48.5 18.5 25.6 17.7 15
    C-KQ2U08-02S 1/4 55.5 49.5 23
    C-KQ2U08-03S 3/8 56.5 50 35
    Ø10 C-KQ2U10-02S 1/4 19 18.5 61 18.5 55 21 40 28.4 30
    C-KQ2U10-03S 3/8 62 55.5 40
    C-KQ2U10-04S 1/2 22 65 57 65
    Ø12 C-KQ2U12-02S 1/4 22 20.9 64.5 20.9 58.5 22 57.4 45.4 32
    C-KQ2U12-03S 3/8 65.5 59 40
    C-KQ2U12-04S 1/2 68.5 60.5 65
    Ø16 C-KQ2U16-03S 27 26.5 76 26.5 69.5 25 81 (81) 106
    C-KQ2U16-04S 79 71 113 (96) 111

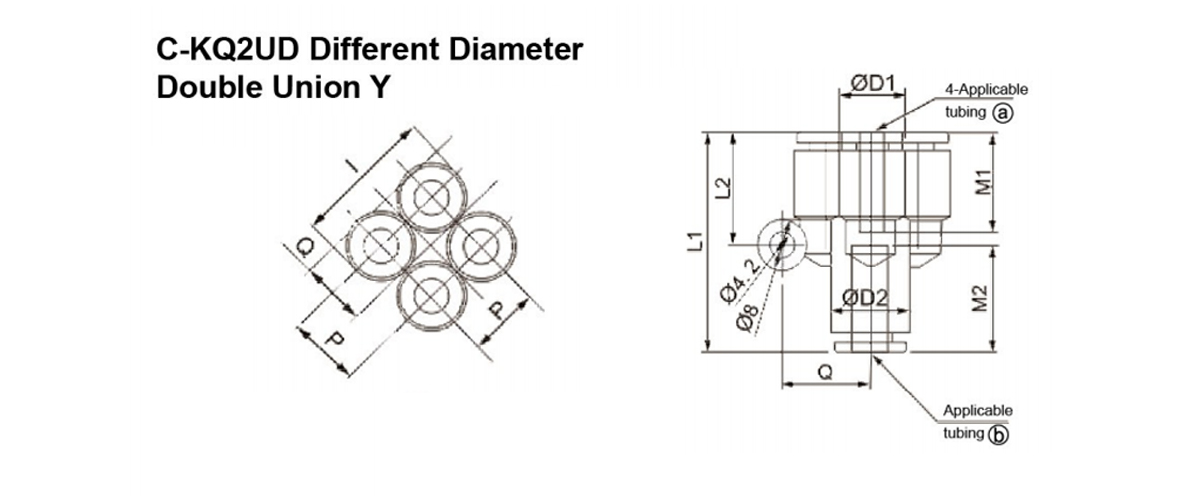

    Applicable
    Tubing O.D
    (mm)     		Model ØD1 ØD2 L1 L2 P I Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø4 Ø6 C-KQ2UD04-06 10.4 12.8 35.5 18.2 10.4 21 9.7 16 17 4.2 4.2 10
    Ø6 Ø8 C-KQ2UD06-08 12.8 15.2 40.5 20.3 12.8 26 11.7 17 18.5 13.4 10.6 17

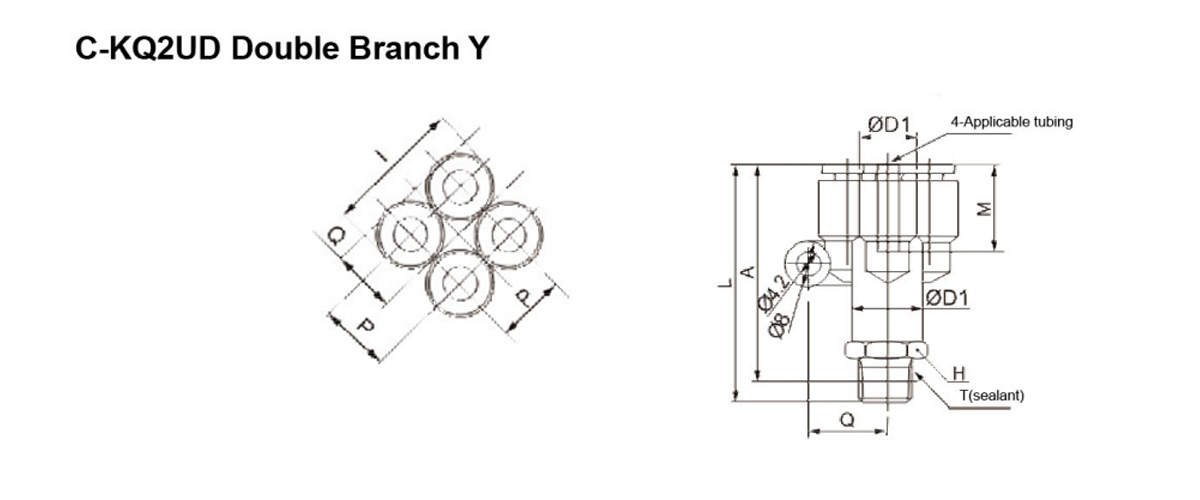

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L I A Q M P
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2UD04-01S 1/8 13 10.4 12.8 43.5 21 39.5 9.7 16 10.4 4.2 4.2 17
    C-KQ2UD04-02S 1/4 14 47 41 25
    Ø6 C-KQ2UD06-01S 1/8 17 12.8 15.2 50.5 26 46.5 11.7 17 12.8 13.4 10.6 29
    C-KQ2UD06-02S 1/4 53.5 47.5

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 P Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2U04-00 10.4 34 18 10.4 9.7 16 4.2 4.2 7
    Ø6 C-KQ2U06-00 12.8 34 20 12.8 11.7 17 13.4 10.6 9
    Ø8 C-KQ2U08-00 15.2 42.5 24.5 15.2 13.7 18.5 25.6 17.7 11
    Ø10 C-KQ2U10-00 18.5 48 27.5 18.5 16.1 21 40 28.4 16
    Ø12 C-KQ2U12-00 20.9 51 30 20.9 18.1 22 57.4 45.4 23
    Ø16 C-KQ2U16-00 26.5 61.5 36.5 26.5 23 25 113 (96) 54
    Ø4 Ø6 C-KQ2U04-06 12.8 35 18 10.4 9.7 16 17 4.2 4.2 6
    Ø6 Ø8 C-KQ2U06-08 15.2 39.5 20 12.8 11.7 17 18.5 13.4 10.6 11
    Ø8 Ø10 C-KQ2U08-10 18.5 45 24.5 15.2 13.7 18.5 21 25.6 17.1 18
    Ø10 Ø12 C-KQ2U10-12 20.9 49 27.5 18.5 16.1 21 22 40 28.4 27
    Ø12 Ø16 C-KQ2U12-16 26.5 66.5 41.5 26.5 23 22 25 57.4 45.4 100
    Ø6 Ø4 C-KQ2U06-04 12.8 35 18 10.4 9.7 17 16 4.2 4.2 6
    Ø8 Ø6 C-KQ2U08-06 15.2 39.5 20 12.8 11.7 18.5 17 13.4 10.6 11
    Ø10 Ø8 C-KQ2U10-08 18.5 45 24.5 15.2 13.7 21 18.5 25.6 17.1 18
    Ø12 Ø10 C-KQ2U12-10 20.9 49 27.5 18.5 16.1 22 21 40 28.4 27
    Ø16 Ø12 C-KQ2U16-12 26.5 66.5 41.5 26.5 23 25 22 57.4 45.4 100

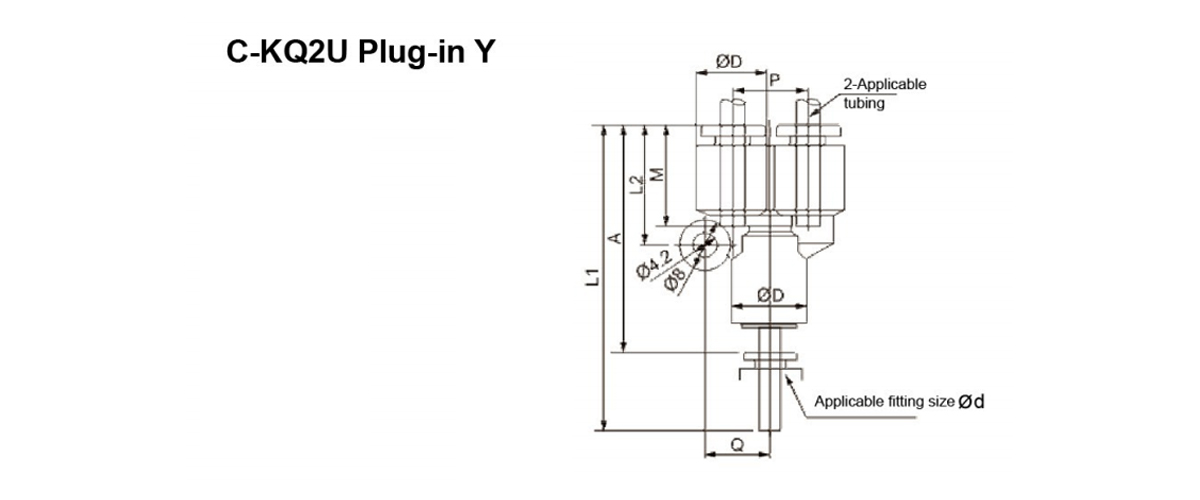

    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD L1 L2 P Q A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2U04-99 10.4 51.5 18 10.4 9.7 35.5 16 4.2 4.2 22
    Ø6 Ø6 C-KQ2U06-99 12.8 55.5 20 12.8 11.7 38.5 17 13.4 10.6 28
    Ø8 Ø8 C-KQ2U08-99 15.2 64.5 24.5 15.2 13.7 46 18.5 25.6 17.7 21
    Ø10 Ø10 C-KQ2U10-99 18.5 71.5 27.5 18.5 16.1 50.5 21 40 28.4 36
    Ø12 Ø12 C-KQ2U12-99 20.9 75.5 30 20.9 18.1 53.5 22 57.4 45.4 32
    Ø16 Ø16 C-KQ2U16-99 26.5 90 36.5 26.5 23 65 25 113 (96) 88

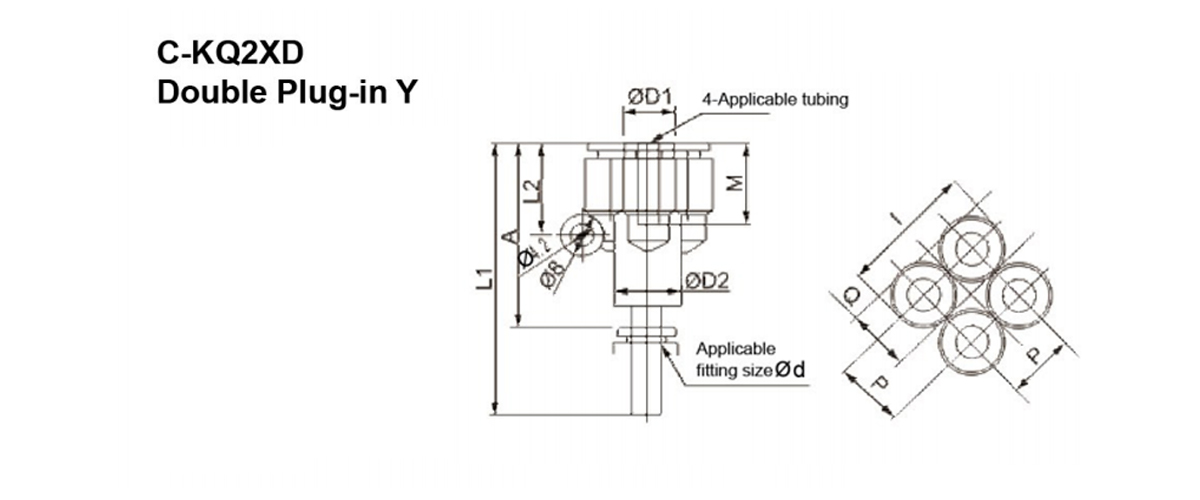

    Applicable
    Tubing
    (mm)
    Applic-
    able Fitting
    Size
    XD     		Model ØD1 ØD2 L1 L2 I Q A P M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2XD04-06 10.4 12.8 54 18.2 21 9.7 37 10.4 16 4.2 4.2 10
    Ø6 88 C-KQ2XD06-08 12.8 15.2 62.5 20.3 26 11.7 44 12.8 17 13.4 10.6 23

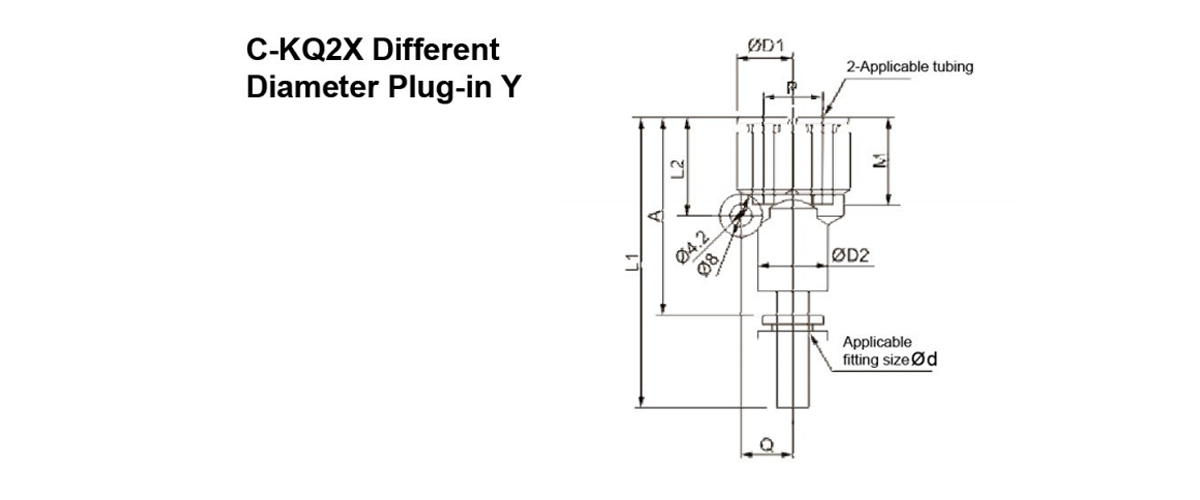

    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD1 ØD2 L1 L2 A P Q M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2X04-06 10.4 12.8 53.5 18.5 36.5 10.4 9.7 16 4.2 4.2 17
    Ø6 Ø8 C-KQ2X06-08 12.8 15.2 61.5 20.5 43 12.8 11.7 17 13.4 10.6 28
    Ø8 Ø10 C-KQ2X08-10 15.2 18.5 68.5 24.5 47.5 15.2 13.7 18.5 25.6 17.1 38
    Ø10 Ø12 C-KQ2X10-12 18.5 20.9 73.5 27.5 51.5 18.5 16.1 21 40 28.4 52

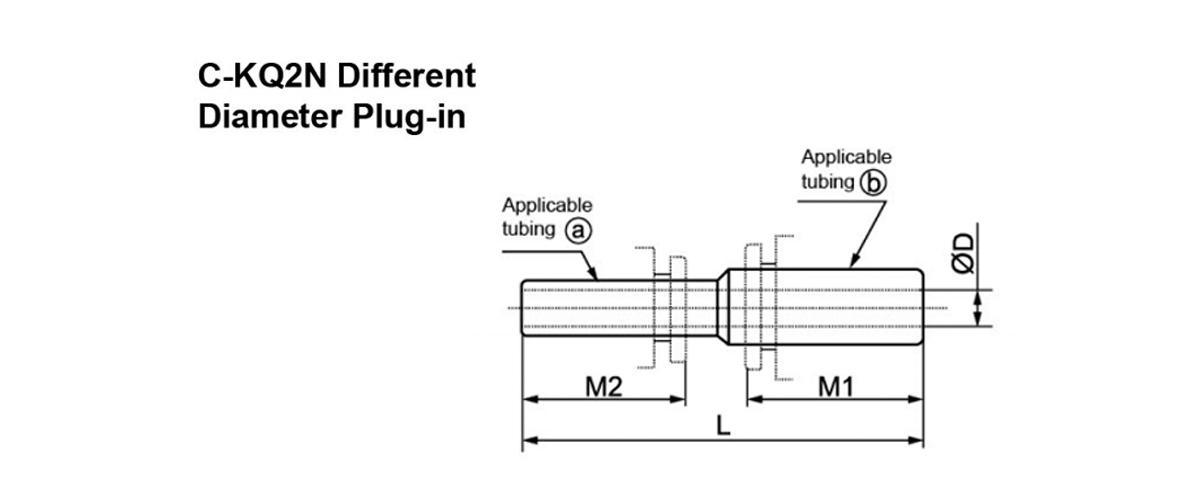

    Applicable Tubing
    (mm)     		Model L M1 M2 ØD Weight
    (g)
    ⓐ ⓑ
    Ø4 Ø6 C-KQ2N04-06 38 17 16 2.5 2
    Ø6 Ø8 C-KQ2N06-08 42 18.5 17 4 2
    Ø8 Ø10 C-KQ2N08-10 47 21 18.5 6 13.2
    Ø10 Ø12 C-KQ2N10-12 51 22 21 8 18.2

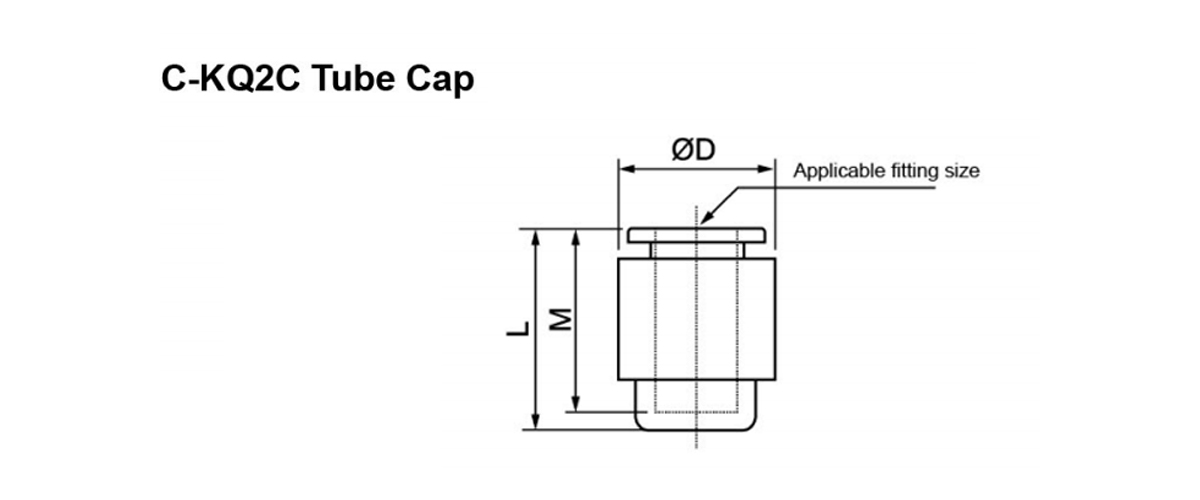

    Applicable Tubing
    (mm)     		Model ØD L M
    Weight
    (g)
    Ø4 C-KQ2C04-00 10.4 17 16 3
    Ø6 C-KQ2C06-00 12.8 18.5 17 3
    Ø8 C-KQ2C08-00 15.2 20.5 18.5 4
    Ø10 C-KQ2C10-00 18.5 23 21 6
    Ø12 C-KQ2C12-00 20.9 24 22 8

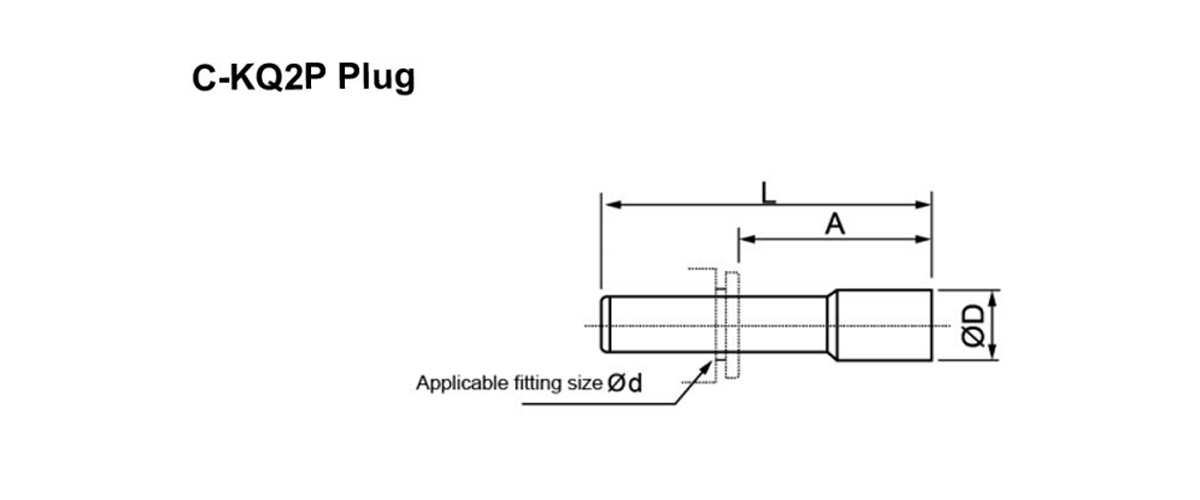

    Applicable
    Fitting Size
    ØD     		Model ØD L A Weight
    (g)
    Ø4 C-KQ2P-04 6 32 16 1
    Ø6 C-KQ2P-06 8 35 18 1
    Ø8 C-KQ2P-08 10 39 20.5 2
    Ø10 C-KQ2P-10 12 43 22 3.5
    Ø12 C-KQ2P-12 14 45.5 24 5

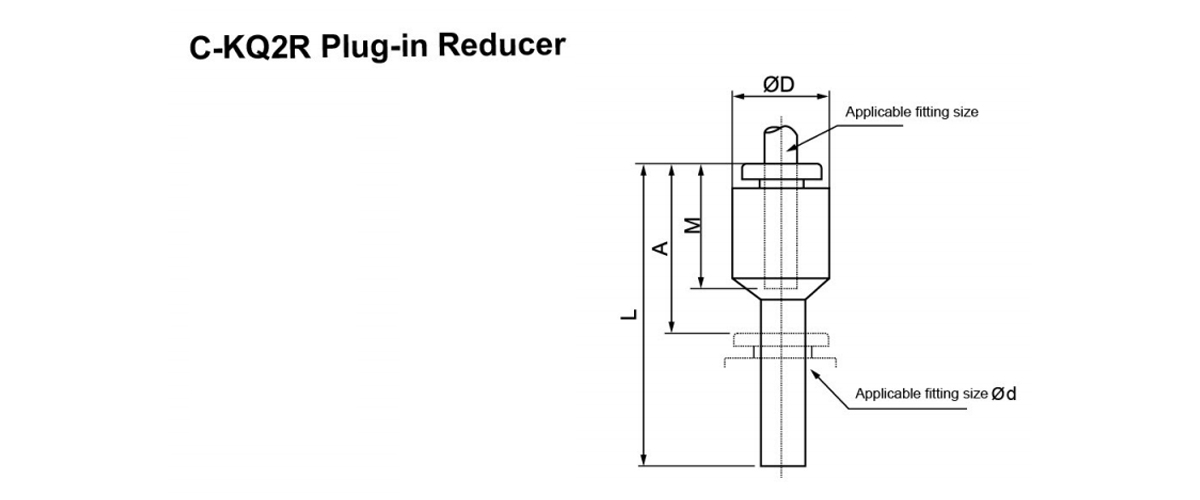

    Applicable
    Tubing
    (mm)     		Applicable
    Fitting Size
    ØD     		Model ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2R04-06 10.4 34.5 17.5 15 5.6 4 1.8
    88 C-KQ2R04-08 36.5 18 2.0
    Ø10 C-KQ2R04-10 12.8 39.5 18.5 3.3
    Ø6 Ø4 C-KQ2R06-04 12.8 37 21 17 4 4 2.5
    88 C-KQ2R06-08 12.8 37 18.5 13.1 10.4 2.5
    Ø10 C-KQ2R06-10 39.5 18.5 3
    Ø12 C-KQ2R06-12 15.2 42 20 4.7
    Ø8 Ø10 C-KQ2R08-10 15.2 41 20 18.5 26.1 18.0 4.0
    Ø12 C-KQ2R08-12 42 4.6
    Ø10 Ø12 C-KQ2R10-12 18.5 44.5 23 21 41.5 32.8 33

    Applicable
    Tubing
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    φ4 C-KQ2E04-00 M12×1 14 32.5 13 16 5.6 4 26
    Φ6 C-KQ2E06-00 M¹4×1 17 34.5 15 17 13.1 10.4 33
    φ8 C-KQ2E08-00 M16×1 19 38 17 18.5 26.1 18.0 52
    φ10 C-KQ2E10-00 M20×1 24 42.5 21 21 41.5 29.5 70
    φ12 C-KQ2E12-00 M22×1 27 44 23 22 58.3 46.1 90
    Φ16 C-KQ2E16-00 M28×1.5 32 51 29 28 113 (96) 115

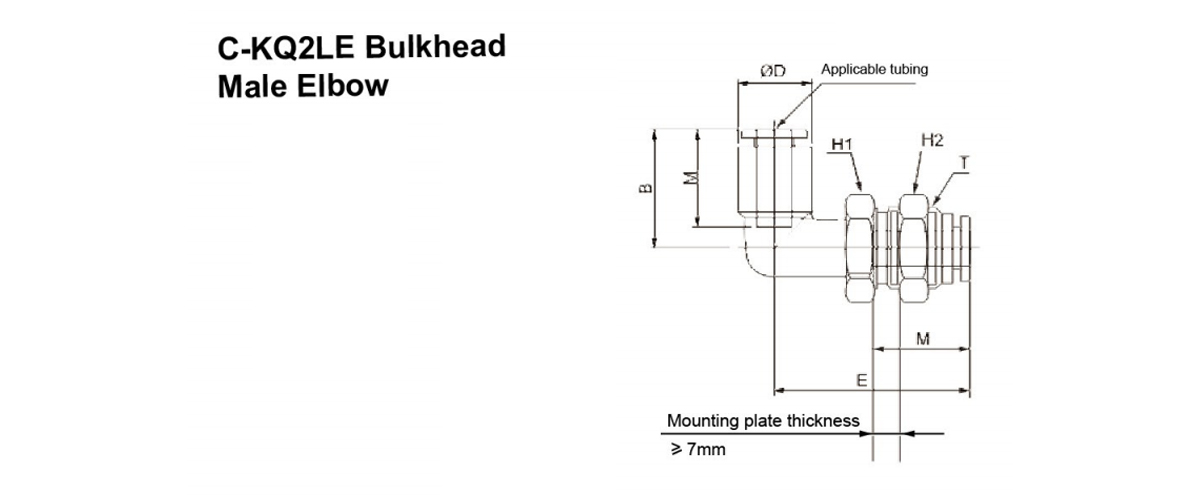

    Applicable
    Tubing
    (mm)     		Model Connection Thread T
    H1
    Width
    Across
    Flats
    H2
    Width
    Across
    Flats     		B E ØD
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LE04-00 M12×1 14 14 18.5 31 10.4 13 16 4.2 4.2 18
    Ø6 C-KQ2LE06-00 M14×1 17 17 20.5 34 12.8 15 17 11.4 9.0 25
    Ø8 C-KQ2LE08-00 M16×1 17 19 23.5 38.5 15.2 17 18.5 21.6 14.9 33
    Ø10 C-KQ2LE10-00 M20×1 22 24 26.5 43.5 18.5 21 21 35.2 25.0 63
    Ø12 C-KQ2LE12-00 M22×1 24 27 28.5 45.5 20.9 23 22 50.2 39.7 77

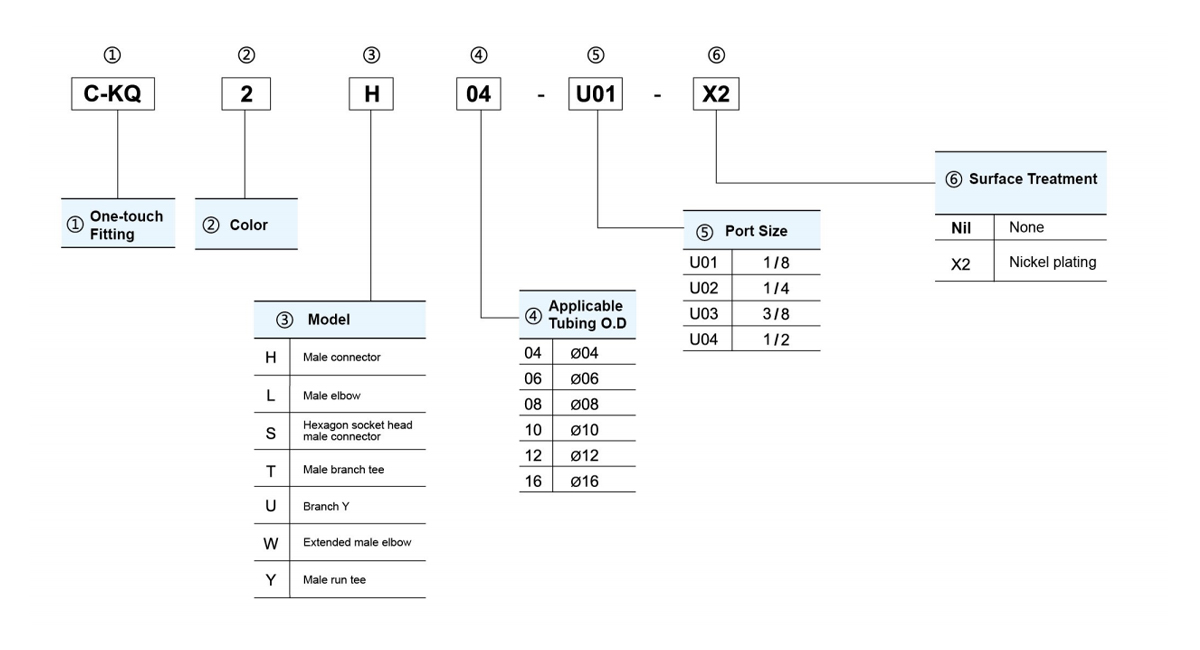

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2H04-U01 18 10 18.5 13.5 16 5.6 5.6 5
    C-KQ2H04-U02 14 14 16.5 10.5 10
    Ø6 C-KQ2H06-U01 1/8 1214 19.5 14.5 17 13.1 13.1 5
    C-KQ2H06-U02 14 13 10
    C-KQ2H06-U03 38 17 17.5 11.5 16
    Ø8 C-KQ2H08-U01 18 14 25 20.5 18.5 26.1 18.0 11
    C-KQ2H08-U02 14 21.5 15.5 27
    C-KQ2H08-U03 3/8 17 19.5 13.5 33
    Ø10 C-KQ2H10-U01 1/8 17 28 23 21 41.5 29.5 17
    C-KQ2H10-U02 14 22 17
    C-KQ2H10-U03 3/8 24 18 14
    C-KQ2H10-U04 12 22 22 14 28
    Ø12 C-KQ2H12-U02 14 19 30.5 24.5 22 58.3 46.1 22
    C-KQ2H12-U03 3/8 25.5 19.5 16
    C-KQ2H12-U04 12 22 24.5 16.5 28
    Ø16 C-KQ2H16-U03 3/8 24 33.5 27.5 24 81 (81) 39
    C-KQ2H16-U04 1/6
    72     		28.5 20.5 113 (96) 25


    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    ( g)
    Nylon Urethane
    Ø4 C-KQ2L04-U01 18 10 10.4 10 18 20 20.5 16 4.2 4.2 8
    C-KQ2L04-U02 1/4 14 22 21.5 14
    Ø6 C-KQ2L06-U01 1/8 10 12.8 10 20 21.5 23.5 17 11.4 11.4 9
    C-KQ2L06-U02 14 14 23 15
    C-KQ2L06-U03 3/8 17 24 24.5 23
    Ø8 C-KQ2L08-U01 18 12 15.2 12 23 22.5 25.5 18.5 21.6 14.9 11
    C-KQ2L08-U02 14 14 24.5 26 16
    C-KQ2L08-U03 3/8 17 25.5 27 24
    Ø10 C-KQ2L10-U01 1/8 17 18.5 17 26.5 25 29.5 21 21.6 14.9 24
    C-KQ2L10-U02 14 26.5 30 35.2 25.0 21
    C-KQ2L10-U03 3/8 27 30.5 25
    C-KQ2L10-U04 12 22 30 31.5 45
    Ø12 C-KQ2L12-U02 14 17 20.9 17 28.5 27 31.5 22 50.2 39.7 23
    C-KQ2L12-U03 3/8 28 32.5 27
    C-KQ2L12-U04 12 22 31 33.5 48
    Ø16 C-KQ2L16-U03 3/8 22 26.5 21 33 40.5 33 24 71 (71) 49
    C-KQ2L16-U04 35 100 (84) 50

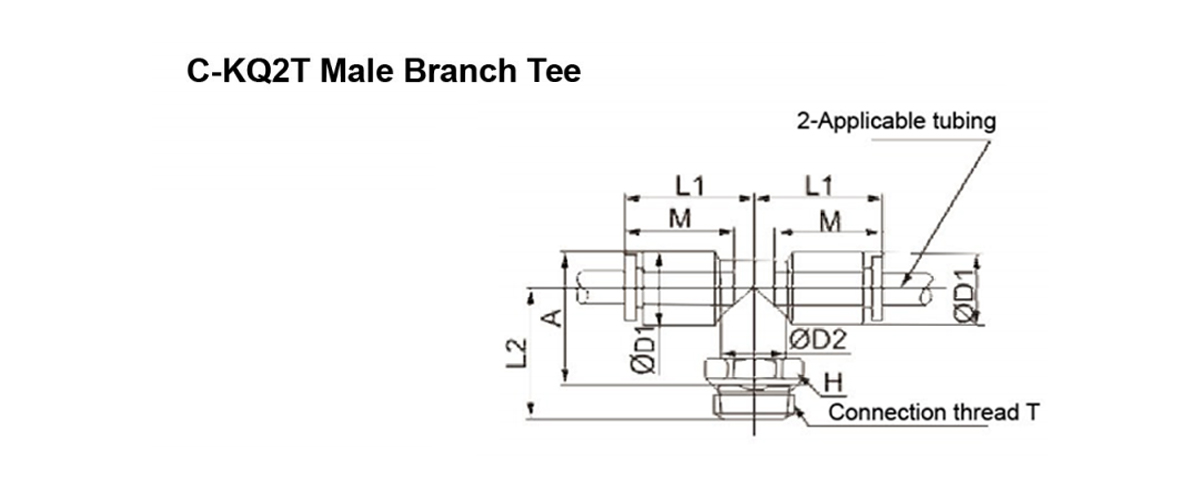

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    ( mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2T04-U01 18 10 10.4 10 18 20 21.5 16 6.0 6.0 9
    C-KQ2T04-U02 14 14 22 15
    Ø6 C-KQ2T06-U01 1/8 10 12.8 10 20 21.5 23.5 17 13.9 13.9 11
    C-KQ2T06-U02 14 14 23 17
    C-KQ2T06-U03 3/8 17 24 24.5 26
    Ø8 C-KQ2T08-U01 18 12 15.2 12 23 22.5 26 18.5 26.3 18.2 15
    C-KQ2T08-U02 14 14 24.5 20
    C-KQ2T08-U03 3/8 17 25.5 27 28
    Ø10 C-KQ2T10-U01 18 17 18.5 17 26.5 25 29.5 21 40.8 29.0 30
    C-KQ2T10-U02 1/4 26.5 30 27
    C-KQ2T10-U03 3/8 27 30.5 31
    C-KQ2T10-U04 12 22 30 31.5 51
    Ø12 C-KQ2T12-U02 14 17 20.9 17 28.5 27 31.5 22 57.2 45.2 31
    C-KQ2T12-U03 3/8 28 32.5 34
    C-KQ2T12-U04 1/2 22 31 33.5 54
    Ø16 C-KQ2T16-U03 22 26.5 21 33 40.5 33 24 71 (71) 62
    C-KQ2T16-U04 35 100 (100) 63

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2U04-U01 18 11 10.4 40 10.4 36 16 4.2 4.2 11
    C-KQ2U04-U02 1/4 14 42 16
    Ø6 C-KQ2U06-U01 1/8 13 12.8 43.5 12.8 39.5 17 13.4 13.4 14
    C-KQ2U06-U02 1/4 14 45 39 18
    C-KQ2U06-U03 3/8 17 46 40 26
    Ø8 C-KQ2U08-U01 18 17 15.2 50.5 15.2 46.5 18.5 25.6 17.7 27
    C-KQ2U08-U02 14 52 46 25
    C-KQ2U08-U03 3/8 51.5 45.5 28
    Ø10 C-KQ2U10-U02 1/4 19 18.5 57.5 18.5 51.5 21 40 28.4 38
    C-KQ2U10-U03 3/8 36
    C-KQ2U10-U04 1/2 22 59 51 51
    Ø12 C-KQ2U12-U02 14 22 20.9 61 20.9 55 22 57.4 45.4 53
    C-KQ2U12-U03 3/8 52
    C-KQ2U12-U04 62.5 54.5 52

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g )
    Nylon Urethane
    Ø4 C-KQ2W04-U01 1/8 10 10.4 10 18 34.5 35.5 16 6.4 4.0 16
    C-KQ2W04-U02 1/4 14 37 38.5 26
    Ø6 C-KQ2W06-U01 1/8 10 12.8 10 20 38.5 41 17 10.9 10.9 18
    C-KQ2W06-U02 1/4 14 40.5 29
    C-KQ2W06-U03 3/8 17 41.5 42 40
    Ø8 C-KQ2W08-U01 1/8 12 15.2 12 23 43.5 46.5 18 20.5 14.2 28
    C-KQ2W08-U02 1/4 14 45.5 47 35
    C-KQ2W08-U03 3/8 17 46 48 46
    Ø10 C-KQ2W10-U02 1/4 17 18.5


    20.9     		17


    17     		26.5


    28.5     		52.5 56 21


    22     		33.5


    47.7     		23.8



    37.7     		67
    C-KQ2W10-U03 3/8 57
    C-KQ2W10-U04 1/2 22 54.5 98
    Ø12 C-KQ2W12-U02 1/4 17 54 58.5 69
    C-KQ2W12-U03 3/8 59
    C-KQ2W12-U04 22 56 99

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2S04-U01 1/8 3 10 23.5 18.5 16 4.1 3.6 7
    Ø6 C-KQ2S06-U01 1/8 4 11.8 24 19 17 10.0 9.9 9
    C-KQ2S06-U02 1/4 13.5 18 107 10.0 12
    Ø8 C-KQ2S08-U01 18 5 14 27.5 22.5 18.5 17.2 16.2 12
    C-KQ2S08-U02 1/4 6 28 22 23.3 14
    C-KQ2S08-U03 3/8 17 27.5 21.5 24
    Ø10 C-KQ2S10-U01 1/8 5 17 30 25 21 17.2 10.0 18
    C-KQ2S10-U02 1/4 8 29 23 39.0 26.6 17
    C-KQ2S10-U03 3/8 28.5 22.5 19
    C-KQ2S10-U04 1/2 21 29 21 36
    Ø12 C-KQ2S12-U02 1/4 8 19 30.5 25 22 46.0 44.5 20
    C-KQ2S12-U03 3/8 9 31 60.0 22
    C-KQ2S¹2-U04 1/2 21 28.5 20.5 30

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2V04-U01 18 8 10.4 13.4 22 13.5 25.5 20.5 16 2.9 2.9 12
    Ø6 C-KQ2V06-U01 1/8 8 12.8 13.4 24 13.5 25.5 20.5 17 7.5 7.5 13
    C-KQ2V06-U02 1/4 10 15.4 23.5 15.5 28 22 21
    Ø8 C-KQ2V08-U01 18 12 15.2 17.6 28.5 14.5 27.5 22.5 18.5 11.2 2430 2225
    C-KQ2V08-U02 14 16.5 29.5 23.5
    C-KQ2V08-U03 3/8 14 20.6 27.5 18.5 34 28 14.3 47 36
    Ø10 C-KQ2V10-U02 1/4 14 18.5 20.6 31 18.5 34 28 21 27 20.3 35
    C-KQ2V10-U03 3/8 38
    Ø12 C-KQ2V12-U03 3/8 17 20.9 25.2 34 20 26.5 30.5 22 39 30.8 52
    C-KQ2V12-U04 1/12 22.5 39.5 31.5 62

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		D Q L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2Y 04-U01 18 11 10.5 4.6 18.1 20.1 34.1 16.1 6.4 6.4 13
    C-KQ2Y 04-U02 1/4 14 22.1 34.1 19
    Ø6 C-KQ2Y 06-U01 1/8 13 12.9 5.4 20.1 21.1 37.1 17.1 13.4 13.4 12
    C-KQ2Y 06-U02 14 14 23.1 37.1 20
    C-KQ2Y 06-U03 3/8 17 24.1 38.1 34
    Ø8 C-KQ2Y 08-U01 1/8 17 15.3 6.1 23.1 22.6 41.6 18.6 25.6 17.7 14
    C-KQ2Y 08-U02 14 24.6 42.1 22
    C-KQ2Y 08-U03 3/8 25.6 43.6 36
    Ø10 C-KQ2Y 10-U02 1/4 19 18.6 6.9 26.6 26.1 47.2 21 40 28.4 29
    C-KQ2Y 10-U03 3/8 27.1 48.1 39
    C-KQ2Y 10-U04 1/2 30.1 48.6 66
    Ø12 C-KQ2Y 12-U02 1/4 22 21 7.6 28.6 27.1 50.1 22.1 57.4 45.4 31
    C-KQ2Y 12-U03 3/8 28.1 51.2 41
    C-KQ2Y 12-U04 1/2 31.1 51.6 68

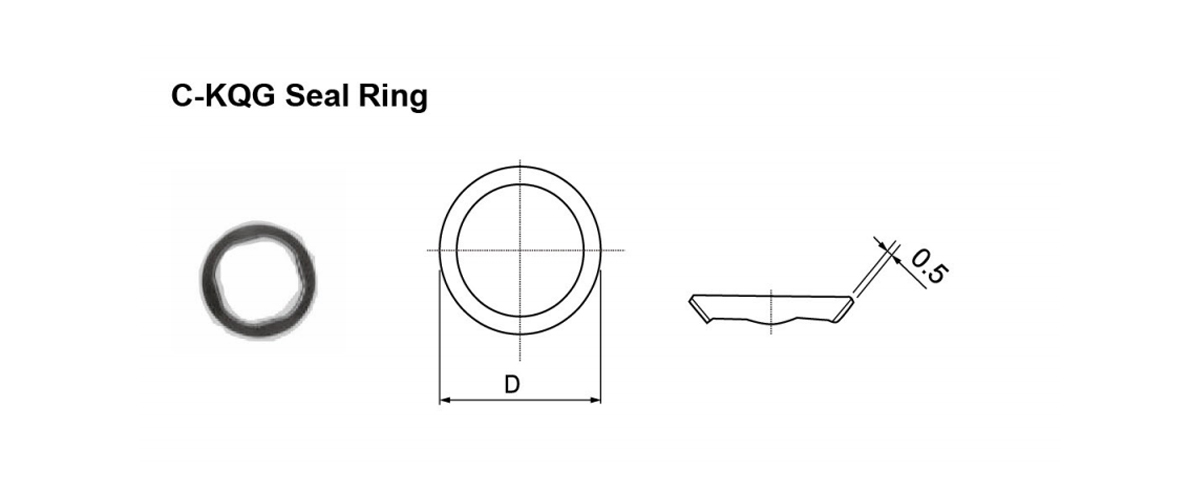

    Applicable Tubing O.D
    (mm)     		Connection Thread T ØD Weight
    (g)
    C-KQG-U01 18 11.8 0.12
    C-KQG-U02 14 15.3 0.19
    C-KQG-U03 3/8 18.7 0.23
    C-KQG-U04 12 23.4 0.34

محصولات مرتبط

وبلاگ و اخبار

آخرین اخبار و
وبلاگ

مشاهده بیشتر

کیفیت واقعی و قابل اعتماد به طور طبیعی برجسته است.

انتخاب از اعتماد میآید و همکاری از صداقت.

  • س: پس از ارسال یک استعلام برای شما، چه مدت می توانیم پاسخی دریافت کنیم؟

    ما ظرف 24 ساعت پس از دریافت درخواست در روزهای کاری به شما پاسخ خواهیم داد.

  • س: آیا شما یک تولید کننده مستقیم یا یک شرکت تجاری هستید؟

    ما یک تولید کننده هستیم و بخش فروش بین المللی خود را داریم. بنابراین ما می توانیم همه را به تنهایی تولید و بفروشیم.

  • س: آیا می توانید محصولات سفارشی بسازید؟

    بله، ما می توانیم محصولات را با توجه به نقشه ها یا نمونه های ارائه شده توسط مشتریان توسعه و تولید کنیم.

  • س: چگونه شرکت شما کیفیت محصول را تضمین می کند؟

    اول از همه، ما پس از هر فرآیند بازرسی را انجام خواهیم داد. برای محصولات نهایی، ما 100٪ بازرسی را با توجه به نیاز مشتریان و استاندارد بین المللی انجام خواهیم داد.

  • س: محصولات شما عمدتا به کجا صادر می شود؟

    محصولات ما عمدتا به آلمان، ایالات متحده، دانمارک و بیش از ده ها کشور در اروپا و آمریکای شمالی صادر می شود
